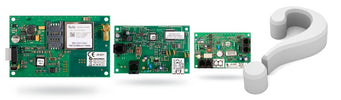

One of the most frequently asked questions is; which communicator do I need for my Jablotron alarm system? We have listed the features of these 3 selectors for you. After all, you can't live without it. You want to be called when your alarm goes off, don't you!
The Jablotron JA-80X PSTN telephone line dialer transmits up to 6 different alarm voice reports to max. 4 phone numbers and or a Contact I.D. reporting to emergency response centers.
An alarm system equipped with a PSTN telephone module is connected to your landline telephone connection (KPN, Ziggo,Tele2, UPC etc) via your modem or landline. When the intrusion detection system detects an intruder it will make a notification via this connection, so you will be called by the alarm system.
Important features
- Alarm voice reporting
- ARC (Alarm receiving center) communication
- Remote access via cell phone
- Backup option for the JA-80Y GSM communicator
The JA-80X uses the dial tone method only.
.
The Jablotron JA-80V LAN / PSTN line dialer is used in particular for notifications to control rooms via IP. The communicator can forward SMS messages or acoustic signals to up to 8 mobile or landline numbers via your telephone connection . (Check the option of your provider whether it supports SMS from a landline!) In addition, there is the possibility of connecting your alarm system to the monitoring station via the LAN connection.
It allows remote access to the system using a cell phone or the Internet. It can also provide a record of events in the system for cell phones and alarm receiving central (monitoring). Is connected in the control center via a BUS connection.
If the communicator is connected to both a PSTN line and a LAN (Ethernet) connection then the following is possible:
- Reporting via SMS (up to max. 8 numbers)
- Reporting via a call with a sound signal
- Reporting to an ARC (Automatic Receiving Center - also known as a Central Monetoring Station) max. 2 ARCs
- Remote control and programming via telephone (authorize a phone remotely as a control panel or via SMS instruction)
- Remote control of devices in the home by means of a call from an authorized phone(Free using an unanswered call)
- Remote control and management via the Internet (www.GSMlink.cz)
The communicator can also be on the PSTN line only or have a LAN connection only. In that case, the following functions are available:
-Only PSTN: Remote control with a phone, reporting via SMS or a call and reporting to max. 2 ARCs (via CID protocol)
-LAN only: Remote access via the Internet, reporting via max. 2 ARCs (using the IP CID protocol)
The Jablotron JA-82Y GSM dialer uses the cell phone network. It allows remote access to the system by using a cell phone, landline phone or the Internet. It can also send a complete report of all security system events and there is the option to send photos along with the reports, which the JA-84P (Photo P.I.R.) makes of the burglars the moment they enter your home. The JA-82Y actually has a photo module on board so with this dialer you do not need to purchase it.
If the communicator is connected to the GSM network the following functions are available:
- Reporting by SMS (up to max. 8 phone numbers)
- Reporting by phone message with voice message alerts (it is possible to store 7 messages for various events)
- Remote control and programming by phone (by calling and using the voice menu or via SMS instructions)
- Remote control of devices in the house by calling from authorized numbers (free of charge with unanswered calls)
- Remote control and programming via the Internet using the free APP
- Data transmission to an alarm center (ARC) - up to 2 ARCs
- Sending photos with the JA-84P detectors on a secure server
- Updating of the communicator such as language and new text can be set via the software OLink 2.0 or higher
Look here for the complete kit with Jablotron JA-80X PSTN phone line dialer
Look here for the complete kit with Jablotron JA-80V LAN / PSTN line dialer
Look here for the complete kit with Jablotron JA-82Y GSM dialer
Ask them below, or send us an email!
