DHI-ART-ARC3000H-03-FW2(868) Wireless Alarm Kit with 4G Hub

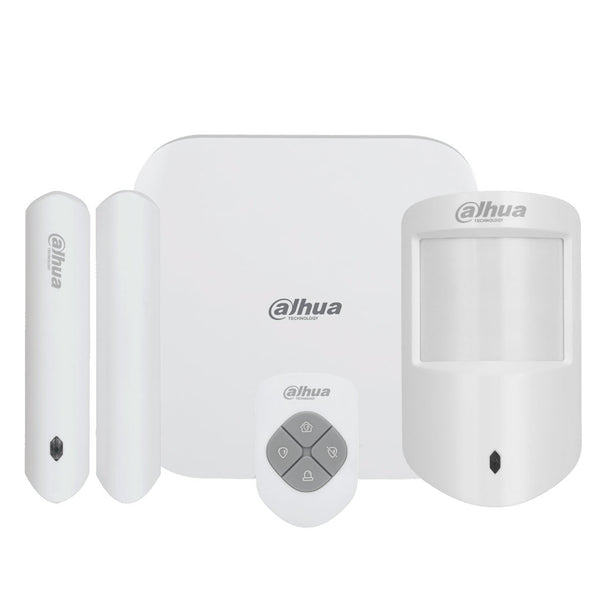

The DAHUA brand offers an Alarm Kit - DHI-ART-ARC3000H-03-FW2(868) that consists of four components, including a wireless motion detector, a wireless door detector, a key fob and an alarm concentrator

Wireless motion detector - ARC3000H-03-FW2(868)

The Dahua ARC3000H-03-FW2(868) wireless motion detector is an essential part of the Alarm Kit. This detector provides effective wireless monitoring of your security system.

Thanks to its advanced technology, the motion detector detects suspicious movements within its field of view. It uses sensitive sensors to detect changes in heat and movement, allowing it to react quickly to potential intruders.

This component is easy to install and configure. It can be placed strategically in your home or business for maximum coverage. With a large detection range and wide viewing angle, it can effectively monitor a specific area.

This wireless motion detector works together with other parts of the alarm kit to provide overall protection. It communicates wirelessly with the alarm concentrator, ensuring reliable transmission of information and enabling a quick response in case of burglary.

Wireless door detector - ARC3000H-03-FW2(868)

The DAHUA Alarm Kit is equipped with a wireless door detector - ARC3000H-03-FW2(868) that uses a reed switch, ideal for non-metal doors. It detects openings and latches with a movement distance of less than 40 mm (1.57 inches).

The PIR detector in this kit uses a low-noise two-element PIR sensor. It can detect suspicious movement within a radius of 12 metres (39.37 feet) at a 90-degree angle, at an installation height of 2.2 metres (7.21 feet). This ensures comprehensive coverage and accurate intrusion detection.

This alarm kit has a PIR detection mode, which is highly sensitive to variations in heat given off by moving bodies. This significantly reduces the number of false alarms and ensures effective detection of suspicious activity.

Sleutelhanger - ARC3000H-03-FW2(868)

The ARC3000H-03-FW2(868) key fob, an integral part of the DAHUA Alarm Kit, is a practical and functional accessory for your security system. With this key fob, you can easily turn the alarm on and off, offering additional convenience in managing your security system. Whether you are inside or outside your home, you can easily check the alarm status.

Compact and lightweight, this gadget is designed for easy portability. You can attach it to your keys, keep it in your pocket or carry it with you at all times. It gives you instant control over your security system, allowing you to remotely activate or deactivate the alarm without having to use the main alarm control panel. It uses reliable wireless communication to connect to the alarm hub. This ensures secure transmission of commands, allowing the system to respond quickly and accurately.

Alarmcentrale - ARC3000H-03-FW2(868)

The ARC3000H-03-FW2(868) alarm hub, part of the DAHUA Alarm Kit, is the intelligent heart of your security system. This essential component provides coordination and communication between all other elements of the kit.

This device acts as a control centre, receiving signals from motion detectors, door detectors and other sensors. It analyses this information in real time to detect potential intruders and issue appropriate alerts.

Thanks to its wireless connectivity, the alarm concentrator can receive information from various sensors over a wide range. It also provides two-way communication, allowing you to remotely control and configure your security system.

This alarm concentrator has a user-friendly interface, so you can customise system settings to suit your specific needs. You can define monitoring zones, adjust sensitivity levels and view event history.

Specificaties:

Buzzer

Hub: Built-in

Button

Hub: 1 × reset, 1 × power, 1 × AP
Keyfob: 4 (Home, Away, Disarm, and SOS)
Door Detector: 1 × power button
PIR Detector: 1 × power button

Indicator Light

Hub: 1 for multiple statuses (alarm, arming, disarming, networking, and malfunction)
Keyfob: 1 × two-color status indicator (green: normal, red: abnormal)
Door Detector: 1 × green alarm indicator
PIR Detector: 1 × green alarm indicator

Storage battery

Hub: Built-in lithium battery

Network Mode

Single SIM (GSM:900/1800 MHz, WCDMA:B1/B5/B8, LTE-FDD:B1/B3/B5/B7/B8/B20, LTE-TDD:B38/B40/B41); dual SIM single standby

Network Port

Hub: 1 × RJ-45 10 M/100 M Ethernet port

Function

Network Protocol

Hub: TCP/IP, including PPTP, L2TP, DHCP, UPNP, and NTP

Offline Cache

Hub: Max. 50 entries (ANR)

Power Failure Protection for Configured Parameters

Hub: Yes

Remote Update

All: Cloud update

Video Linkage

Hub: Yes

SMS

Hub: Yes (up to 5 phone numbers)

Phone Call

Hub: Yes (up to 5 phone numbers)

Low Battery Alarm

All: Yes

Tamper Alarm

Hub: Yes
Door Detector: Yes
PIR Detector: Yes

User Management

Hub: Share function for App users

Hub: Searching push messages, device status, and program version. Detecting signal strength.
Keyfob: Signal strength detection
Door Detector: Signal strength detection
PIR Detector: Signal strength detection

Arm and Disarm

Hub: App; keyfob; schedule

Wireless

Carrier Frequency

All: 868.0 MHz-868.6 MHz

Communication Distance

Hub: Up to 2,000 m (6,561.68 ft) in an open space
Keyfob: Up to 900 m (2,952.76 ft) in an open space
Door Detector: Up to 1,200 m (3,937.01 ft) in an open space
PIR Detector: Up to 1,600 m (5,249.34 ft) in an open space

Communication Mechanism

All: Two-way

Encryption Mode

All: AES128

Frequency Hopping

All: Yes

Wi-Fi

Hub: 2.4G

Peripherals

External Zone

Door Detector: 1-channel dry contact input

Temperature

Measuring Range (Temperature)

Door Detector: -15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)
PIR Detector: -15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)

Measuring Precision (Temperature)

Door Detector: ± 1 °C (± 33.8 °F)
PIR Detector: ± 1 °C (± 33.8 °F)

Resolution (Temperature)

Door Detector: 1 °C (33.8 °F)
PIR Detector: 1 °C (33.8 °F)

Specification

Sensor

Door Detector: Reed switch
PIR Detector: Dual elements low-noise PIR sensor

Test Mode

Door Detector: Yes
PIR Detector: Yes

Scenario

Door Detector: Non-metal doors

Movement Distance

Door Detector: < 40 mm (1.57")

Detection Mode

PIR Detector: PIR

Detection Range

PIR Detector: 12 m (39.37 ft) (90°) with installtion height of 2.2 m (7.21 ft)

Detection Speed

PIR Detector: 0.3 m/s-3 m/s (0.98 ft/s-9.84 ft/s)

Pet Immunity Level

PIR Detector: ≤ 18 kg (39.68 lb)

White Light Resistance Level

PIR Detector: 6500 lx

Two-way Digital Temperature Compensation

PIR Detector: Yes, no attenuation of detection distance in high temperature

Sensitivity

PIR Detector: 3 levels adjustable
