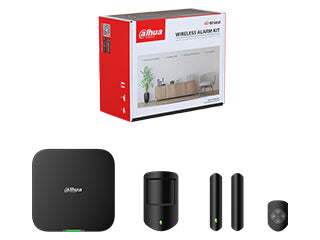

ART-ARC3800H-03-FW2(868) Alarm Kit Black, Hub 2 with WiFi, LAN and backup 4G sim slot

This complete Dahua kit consists of a HUB 2 that can be connected to your network router with WiFi or LAN. This HUB2 also has as backup communication a 4G sim slot that can hold a simcard with 4G. Furthermore, the kit is equipped with a wireless magnetic contact, motion sensor and a remote control. You can further expand this kit with the required detection.

The Alarm Hub manages the wireless alarm devices to alert on intrusion through doors, opened windows, broken glass, fire and leakage. In the event of an intruder, the hub alerts the alarm center and mobile app (DMSS or DoLynk Care) and sends video from the PIR camera and IPC, keeping you informed without having to monitor yourself.

• Supports alarm video monitoring via integration of the IPC with the hub.
• Images can be transferred quickly and remotely from the PIR-Cam to the device.
• Supports wired and AP network configuration methods, making it easier to add the hub to apps and switch to the hub's network.
• Supports multi-network redundancy for Ethernet and Wi-Fi to ensure the network remains stable and reliable.
• Supports two-way communication and frequency hopping for stable and reliable communication with wireless peripherals.
• Features cloud updates. You can also update the device and wireless peripherals remotely via the mobile app.
• The hub features 4G


• In the Kit:

  1x Hub 2 4G
  1x Motion Detector
  1x Magnetic Contact
  1x Handheld transmitter

Specifications:

• Gates

  • Wireless Zone: Hub supports 150 channels of wireless peripherals (6 sirens, 64 PIR cameras (only 8 indoor PIR cameras), 64 key fobs, 8 keypads and 4 repeaters)
  • Network mode: Hub supports Ethernet, Wi-Fi and mobile network (supports installation of dual SIM cards. Only one card can be enabled at a time)
  • Network port: 1 RJ-45, 10 Mbps/100 Mbps Ethernet port
  • Storage battery: Built-in 4,750 mAh rechargeable lithium battery

• Video & Audio

  • Video input: 8-channel IPC, support for alarm video upload only
  • Audio output: 1 channel
  • Volume control: Yes
  • Voice broadcast: Local speaker

• Features

  • Indicator lamp: The indicator shows the status of alarms, power on/off, network connection and device failures.
    • Keychain : 1 two-color status indicator (Green means normal and red means abnormal)
    • Door detector: 1 green alarm indicator
    • PIR Detector: 1 green alarm indicator
  • Button: Contains reset button, power button and AP switch button.
    • Keychain: 4 buttons (Home, Away, Power Off, and SOS)
    • Door detector: 1 on/off switch
    • PIR Detector: 1 on/off switch
  • SMS: Yes, up to 5 phone numbers
  • Phone call: Yes, up to 5 phone numbers
  • Video link: Yes
  • Offline Cache: Stores up to 50 alarm messages
  • Enable and Disable: App, Keypad, remote control, card, scheduled power on and off
  • Remote update: Cloud update
  • Low battery detection: Yes
  • Sabotage: Yes
    • Hub, Door Detector, PIR Detector
  • User Management: Up to 33 app users and 32 keyboard users
  • Logs: Up to 5,000 entries

• Measuring range (Temperature)

  • Door detector: -15 °C to +65 °C (indoors)
  • PIR Detector: -15 °C to +65 °C (indoor)
  • Transmission protocol: SIA, SoftGuard

• Technical

  • Sensor:
    • Door detector: Reed switch
    • PIR Detector: Dual-element low-noise PIR sensor
  • Detection mode: PIR
  • Sensitivity: 3 levels adjustable
  • Detection range: 12 m (90°) at installation height of 2.2 m
  • Detection speed: 0.3 m/s-3 m/s
  • Movement distance: Door detector < 40 mm
  • Pet immunity level: ≤ 18 kg
  • White light resistance level: 6500 lx
  • Digital temperature compensation: Yes, no decrease in detection distance at high temperature
  • Scenario: Non-metallic doors

• Wireless

  • Carrier Frequency: 868.0 MHz-868.6 MHz
  • Transmitter power (EIRP): Limit 25 mW
  • Communication mechanism: Two-Way
  • Communication distance:
    • Hub: Up to 2,000 m in open space
    • Keychain: Up to 900 m
    • Door detector: Up to 1,200 m
    • PIR Detector: Up to 1,600 m
  • Encryption Mode: AES128
  • Frequency jump: Yes

• General

  • Language: English
  • Power supply:
    • Hub: 100-240 VAC, 50/60 Hz
    • Key ring: CR2032 battery
    • Door detector: CR123A battery
    • PIR Detector: CR123A battery
  • Standby time:
    • Hub: Up to 12 hours
    • Key ring: 3 years
    • Door detector: 4 years
    • PIR Detector: 4 years
  • Power consumption:
    • Hub: Max. 12 W
    • Keychain: Max. 100 mW
    • Door detector: Max. 125 mW
    • PIR Detector: Max. 120 mW
  • Operating temperature: -10 °C to +55 °C
  • Operating humidity: 10%-90% (RH)

• Product dimensions

  • Hub: 174.8 mm × 174.8 mm × 38.3 mm
  • Key ring: 60.0 mm × 39.5 mm × 15.0 mm
  • Door detector: 100.2 mm × 20.8 mm × 20.3 mm
  • PIR Detector: 104.0 mm × 60.0 mm × 50.0 mm
  • Net weight:
    • Hub: 510 g
    • Key ring: 20 g
    • Door detector: 70 g
    • PIR Detector: 100 g
  • Gross weight: Kit: 1.46 kg

• Installation

  • Hub: Wall mount; Desk mount
  • Door Detector: Bracket Mount
  • PIR Detector: Wall mount
  • Housing material: PC + ABS
  • Certifications: CE
  • Anti-corrosion Level: Basic Protection
  • Storage Temperature: -10 °C to +55 °C
  • Packaging dimensions: 270 mm × 218 mm × 122 mm

• Wi-Fi

  • Wi-Fi Standard: IEEE 802.11b/g/n
  • Wi-Fi Frequency Range: 2400-2483.5 MHz
  • Wi-Fi Power Transmission: ≤20 dBm @ 2400-2483.5 MHz

• Mobile Network

  • Transmission Power (EIRP):
    • 4G: Power class3: 23 dBm±2dB
    • 3G: Power class3: 24 dBm+1/-3dB
    • 2G: Power class0: 30 dBm±3dB
  • Mobile network standard: GSM/WCDMA/LTE
  • Frequency range:
    • RU: 4G FDD-LTE: B1/B3/B7/B8/B20/B28, TDD-LTE: B38/B40/B41, 3G WCDMA: B1/B5/B8, 2G GSM: 1,800/900MHz
    • EU: 4G FDD-LTE: B1/B3/B7/B8/B20/B28A, TDD-LTE: B38/B40/B41, 3G WCDMA: B1/B8, 2G GSM: 1,800/900MHz
