Hikvision's 2-wire HD intercoms are ideal for small to medium-sized apartment complexes, residential home and villa solutions or renovation projects where existing wiring is maintained. This intercom operates entirely on a bus addressing system with no network or IP address involved. The indoor stations have a Wi-Fi option. Through this option, it is therefore still possible to add the intercom system to Hik-connect .

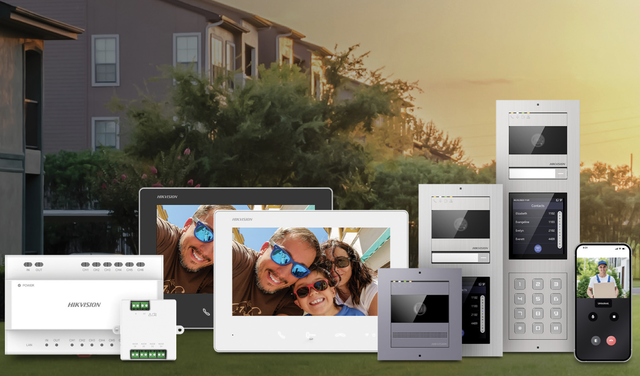

Hikvision's video door entry products are suitable for various applications, including houses and flats. 2-Wire HD series is designed to simplify installation and ensure an even more stable connection, this system offers a whole new dimension of efficiency and ease of use.
The 2-Wire HD series represents a standalone product group, no longer combinable with Hikvision's 'Y' series and IP intercoms. This gives users a dedicated solution optimised for seamless operation with a focus on reliability and performance. The products can still be managed via a mobile app.

Hikvision Intercom systems can be expanded from 1 outdoor station and 1 indoor station up to and including 16 outdoor stations and 99 indoor stations. Each main indoor station can be extended with 5 indoor station extensions.

Specifications:

DS-KD7003EY-IME2:

Video	Camera	Low light 2MP with IR
	Resolution Main-stream	1920x1080
	Resolution Substream	720x480
	Light compensation	WDR
	Ruisreductie	DNR
	Openingshoek	Horizontal 133°, Vertical 82°
	IR	Built-in IR component
Audio	Audio in	Omnidirectional microphone
	Audio out	Built-in speaker, 80 dB within 20cm
	Compressie	G.711 U, G711 A
	Compression data	64Kbps
	Audio quality	Noise reduction and echo filtering
Netwerk	Wired network interface	Wired transmission
	Protocol	TCP/IP, RTSP
Interfaces	Sabotage contact	1
	Sub -module connector	1
	I/O Input	2
	Relay	2, Max. 30VDC 1A
	Debug port	1
Algemeen	Beldrukker	1
	Voeding	12VDC / 2 Wire
	Verbruik	Max. 5W
	Operating temperature	-40° C to +60° C
	Water-resistant	IP65
	Afmetingen	99.5mm × 98.5mm × 35mm

DS-KH7300EY-WTE2

Display	Screen	7-inch LCD TFT
	Resolutie	1024 x 600
	Bediening	Capacitive touch screen
Audio	Audio in	Built-in omnidirectional microphone
	Audio out	Built-in speaker
	Audio compression	G.711 U G.711 A
	Compression data	64Kbps
	Audio quality	Noise suppression and echo filtering
Netwerk	Draadloos	Wi-Fi 802.11 b/g/n
	Network protocol	TCP/IP, RTSP
	Wired network interface	Wired transmission
Overige	Alarm input	8 alarm inputs
	Relay	-
	SD card	Max. 128GB
	RS485	-
	Voeding	48V via DS-KAD7060EY or DS-KAD7061EY 2-Wire power supply
	Verbruik	5W
	Operating temperature	-10° C to +50° C
	Humidity	10 to 90%
	Afmetingen	190.2 mm × 138.2 mm × 20 mm

Hikvision 2-wire HD modular (1)

Too much choice? Chat or call us at 085-0160316

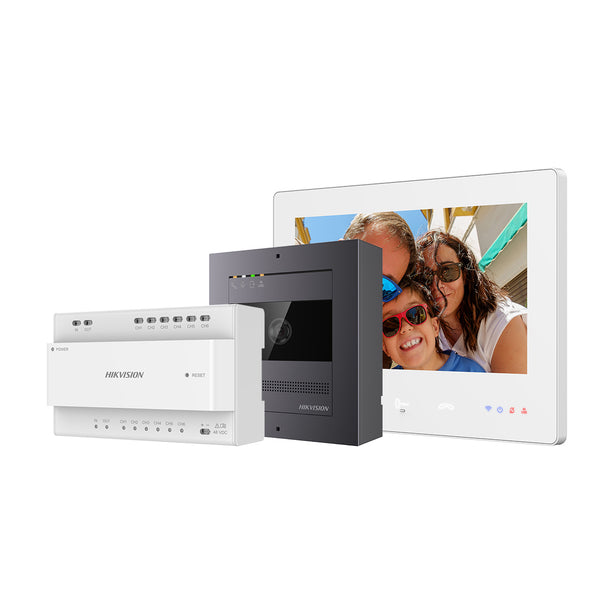

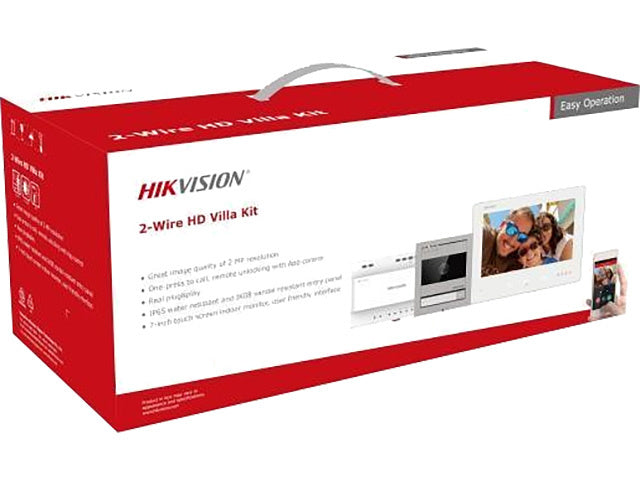

HikvisionDS-KIS704EY Video intercom 2-Wire Full HD Aluminium 2-Wire Set
