Product form

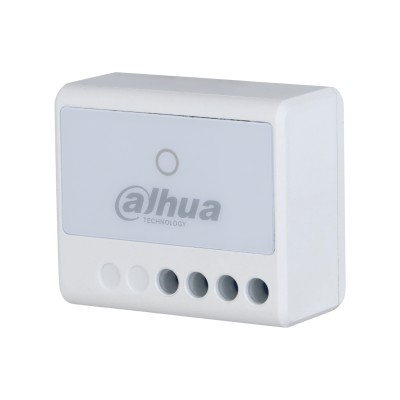

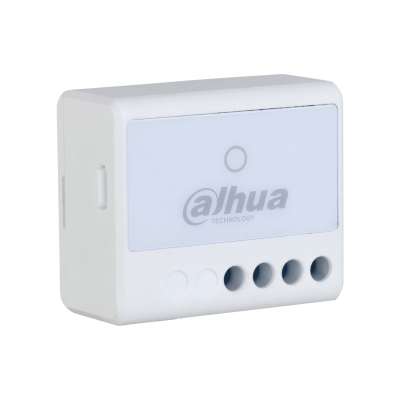

DHI-ARM7011-W2(868) Wireless relay 7-24VDC

DHI-ARM7011-W2(868) Wireless Relay 7-24VDC Dahua Wireless Relay Frequency hopping and two-way communicaton technology ensure stable communication. Supports interference detection and... Read more

Delivery time 1 - 2 working days

€62,40€51,57 -25% -25%
€46,80€38,68 Incl. VATExcl. VAT

    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • PayPal
    • Union Pay
    • Visa

    Commande des installateurs B2B avec remise

    • The best service and warranty
    • Free returns within 14 days
    • Free remote installation

    check Associated products for DHI-ARM7011-W2(868) Wireless relay 7-24VDC

    Size chart

    DHI-ARM7011-W2(868) Wireless Relay 7-24VDC

    Dahua Wireless Relay Frequency hopping and two-way communicaton technology ensure stable communication. Supports interference detection and communication encryption. Supports cloud update and automatically recovers when cloud update fails. Protection against overheating. Voltage detection. 1 channel external tamper input.

    Specificaties:

    • Port
    • Alarm Input - 1 for tamper, NO/NC
    • Relay Output - 1, NO/NC (0-36 VDC, Max 5A)

      Function
    • Indicator Light - 1 for multiple statuses (pairing, communication)
    • Button - 1
    • Remote Update - Cloud update

      Technical
    • Test Mode - Yes

      Wireless
    • Carrier Frequency - 868.0 MHz-868.6 MHz
    • Communication Mechanism - Two-way
    • Communication Distance - 1200 m (3937.01 ft) in open areas
    • Encryption Mode - AES128
    • Frequency Hopping - Yes

      General
    • Power Supply - 7-24 VDC
    • Operating Temperature --10 °C to +55 °C (+14 °F to +131 °F) (indoor)
    • Operating Humidity - 10%-90% (RH)
    • Storage Temperature - -10 °C to +55 °C (+14 °F to +131 °F)
    • Storage Humidity - 10%-90% (RH)

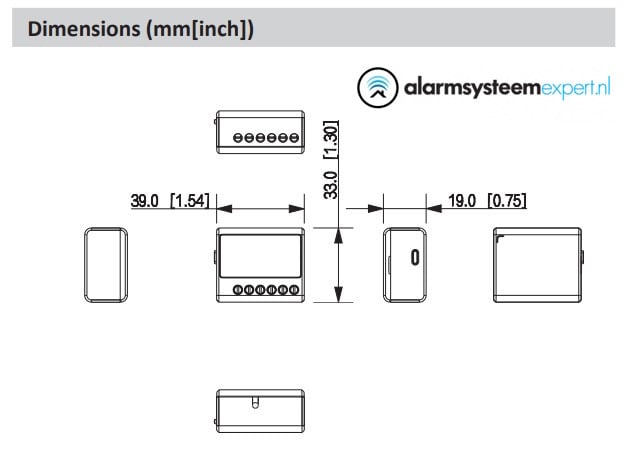

    • Product Dimensions - 39 mm × 33 mm × 19 mm (1.54" × 1.30" × 0.75")
    • Packaging Dimensions - 95 mm × 59.5 mm × 30.5 mm (3.74" × 2.34" × 1.20")
    • Net Weight - 45 g (0.10 lb)
    • Gross Weight - 60 g (0.13 lb)
    • Installation - Wall mount
    • Casing Material - PC + ABS
    • Certifications - CE
