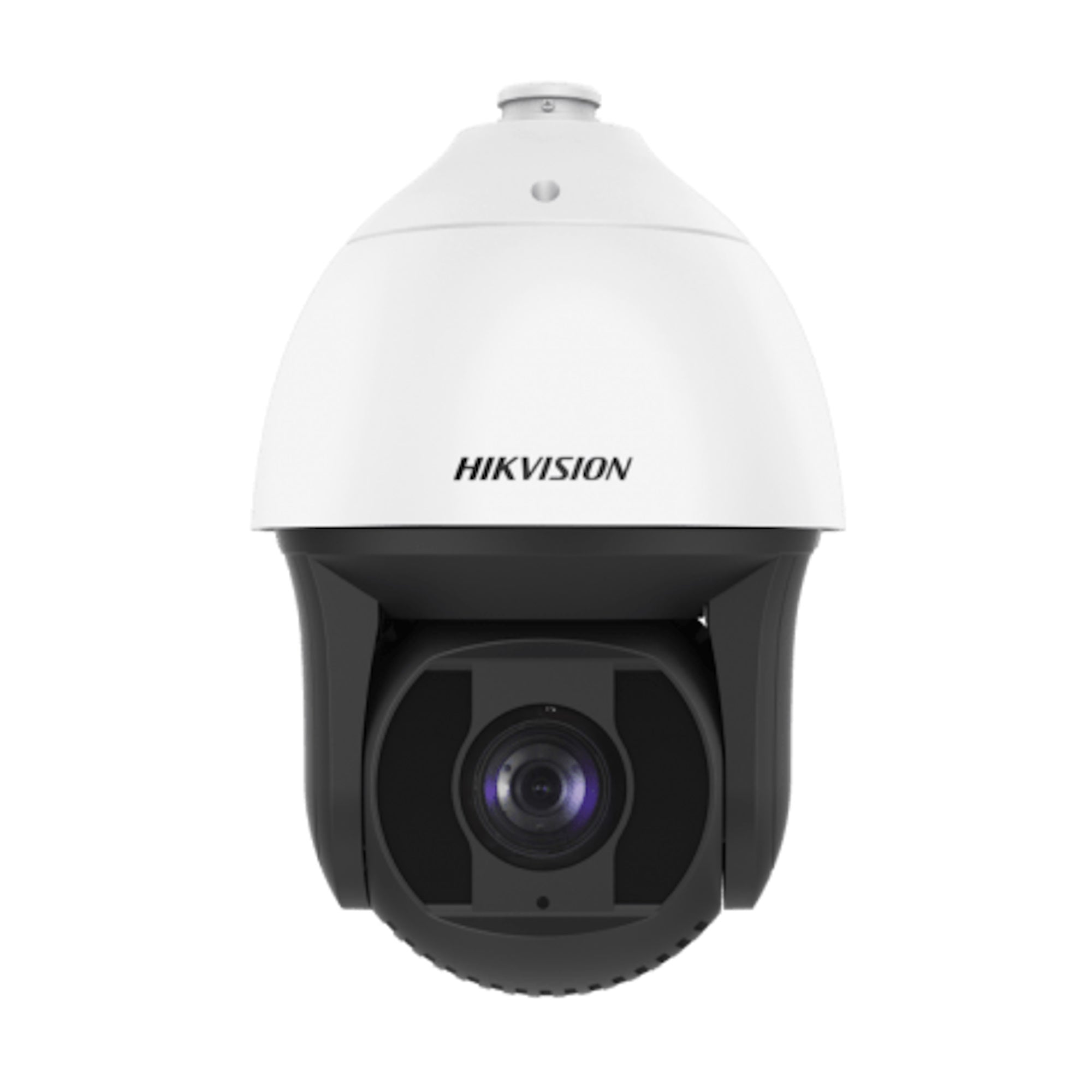

    DS-2DF8436IX-AEL | 4 Megapixel | Indoor/Outdoor | Night Vision | 36x Zoom | Smart Tracking


    High Quality Colored Images:
    The Hikvision Darkfighter PTZ cameras are capable of displaying high quality colored images under conditions of minimal illumination. This is possible from as little as 0.002 lux illumination level (color). The camera also features True WDR (120dB) and provides images with a quality of 4MP. With the 36X optical zoom Day/Night lens, the camera offers more detail over vast areas. A unique feature of this PTZ camera is that it can rotate 20 degrees through its horizontal axis, which means that even in zoomed-in mode, the PTZ can still rotate upwards to give the optimal images.

    Rapid Focus:
    The intelligent Rapid Focus function ensures that at any spot in the image can give sharp images at lightning speed. By focusing on all locations in the image, and saving these parameters, the PTZ can go to any location in the image and focus directly from memory. This lightning-fast focusing technique is rightly called Rapid Focus.

    Smart Features:
    The Darkfighter PTZ camera also features a wide range of smart functions, such as face recognition, intrusion detection, crossline detection. These features are combined with the smart tracking, which enables the camera to detect and track any gradually moving object. Smart Anti-fog and EIS (Electronic Image Stabilization) are further used to improve image quality in challenging conditions. The Darkfighter Smart PTZ opens up new possibilities for 24-hour camera surveillance.

    Specifications:

    - 1/1.9" HD CMOS sensor

    - Up to 2560 × 1440 resolution

    - 36X Optical Zoom

    - Min. Illumination:

      Color: 0.005 Lux @(F1.5, AGC ON)

      B/W: 0.0005 Lux @(F1.5, AGC ON)

      0 Lux with IR

    - Smart Tracking

    - Smart Detection

    - 200m IR distance

    - Optional wiper(-W)

    - Hi-PoE / 24VAC power supply

    - Support H.265+/H.265 video compression

    Camera
    Image Sensor: | 1/1.9" progressive scan CMOS
    Effective Pixels: | 2560(H)×1440(V)
    Signal System: | PAL/NTSC
    Minimum Illumination: | Color: 0.005 Lux @(F1.5, AGC ON)
    B/W: 0.0005 Lux @(F1.5, AGC ON)
    0 Lux with IR
    White Balance: | Auto / Manual
    AGC: | Auto/Manual
    BLC: | ON/OFF
    HLC: | Support
    Smart defog: | Support
    WDR: | DWDR
    Shutter Time: | 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
    Day& Night: | ICR
    Digital Zoom: | 16X
    Privacy Masking: | 24 privacy masks programmable
    Auto Focus: | Auto / Semi-automatic / Manual
    Lens
    Focal Length: | 5.7 mm to 205.2 mm, 36× Optical
    Zoom Speed: | Approx. 4.4s (optical lens, wide-tele)
    Angle of View: | Horizontal field of view: 51.1° to 1.7° (wide-tele)
    Vertical field of view: 31.3° to 1.0° (wide-tele)
    Diagonal field of view: 58.0° to 2.0° (wide-tele)
    Minimum Working Distance: | 10-1500mm(Wide-Tele)
    Aperture Range: | F1.5~F4.5
    Pan & Tilt
    Pan Range: | 360°endless
    Pan Speed: | Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s
    Tilt Range: | -20°~90°(Auto Flip)
    Tilt Speed: | Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s
    Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples
    Number of Preset: | 300
    Patrol: | 8 patrols, up to 32 presets per patrol
    Pattern: | 4 patterns, with the recording time not less than 10 minutes per pattern
    Power loss recovery: | Support
    Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
    PTZ Position Display: | ON/OFF
    Freeze Frame: | Support
    Smart-tracking: | Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger
    Wiper: | Optional
    Infrared
    IR irradiation distance: | 200m
    IR irradiation angle: | Adjustable by zoom
    Alarm
    Alarm Input: | 7 Inputs
    Alarm Output: | 2
    Alarm Actions: | Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
    Network
    Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
    Main Stream: | 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
    60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
    Sub Stream: | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
    Third Stream: | 50Hz: 25fps(704×576, 640×480, 352×288);
    60Hz: 30fps(704×480, 640×480, 352×240)
    Video Compression: | Main Stream: H.265+/H.265/H.264+/H.264
    Sub-Stream: H.265/H.264/MJPEG
    Third Stream: H.265/H.264/MJPEG
    ROI encoding: | Support
    Audio Compression: | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
    Audio Mode: | OFF/Audio input/Audio output
    No. of Simultaneous Users: | Up to 20 users
    Three-Stream: | Support
    Mini SD Card: | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
    Security Measures: | User authentication (ID and PW),
    Host authentication (MAC address)
    IP address filtering
    Client GUI
    Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
    Date & Time Display: | Time: Week: Date, 6 formats on the Client
    Client: | Support iVMS-4200
    Web Browser: | IE 7+, Chrome 18 - 42, Firefox 5.0+, Safari 5.02+
    General
    RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive
    Power Consumption: | 24 VAC (Max. 60 W)
    Hi-PoE (Max. 50 W)
    Working Temperature/Humidity: | -40°C ~ 65°C (-40°F ~ 149°F)
    Protection Level: | IP66 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection

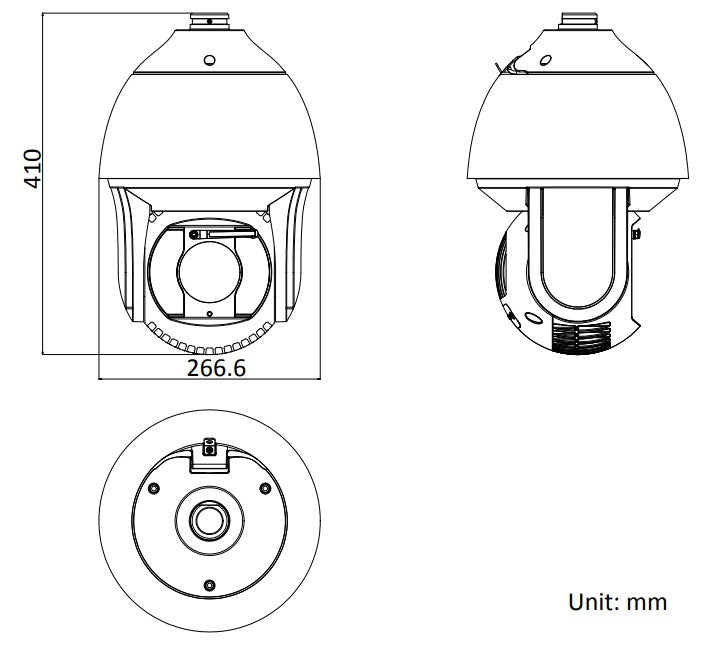

    Dimensions: | Φ 266.6 mm × 410 mm (Φ 10.50" × 16.14")
    Weight (approx.): | 8kg (approx.17.64lb)
