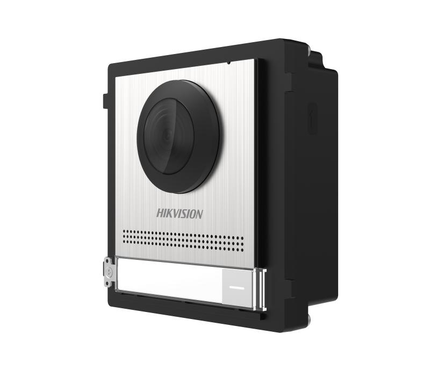

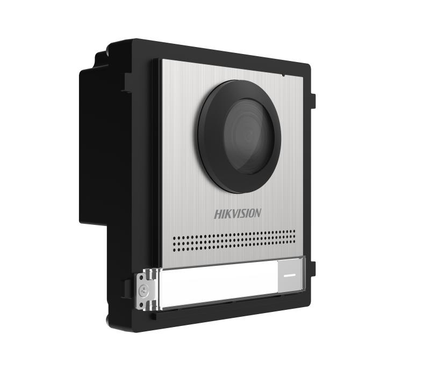

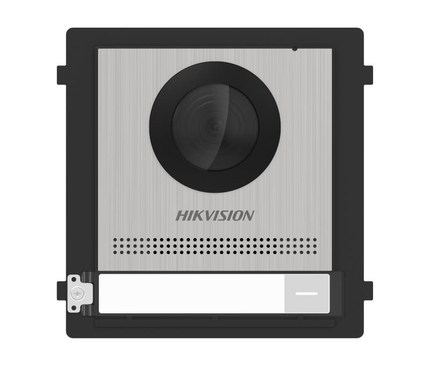

The Hikvision DS-KD8003-IME1/S(B) RVS is a KD8 Series modular door station designed to combine video intercom functionality with access control. This model features a 2 MP fisheye camera with additional infrared (IR) illumination, improving visibility in low-light conditions. The wide field of view, with a horizontal angle of 146° and a vertical angle of 82°, provides wide coverage of the area in front of the door.

The door station runs on an embedded Linux operating system and features 32 MB ROM and 256 MB RAM, powered by an embedded processor. This configuration underlines its ability to meet the requirements of modern security and communication systems. The video compression standard used is H.264, which is effective in reducing file size and maintaining video quality.

Specificaties:

• Operating system - Linux
• ROM - 32 MB
• RAM memory - 256MB
• Processor - Built-in high-performance processor

  Video parameters
• Lens - 2 MP HD camera
• Resolution - 2 MP
• Field of view - Horizontal: 146°, Vertical: 82°
• Dynamic range (WDR) - Support
• Extra light - Low illumination, IR supplement illumination
• Videocompressiestandaard - H.264

  Audioparameters
• Audio input - 1 built-in omnidirectional microphone
• Audio compression standard - G.711 U/G.711 A
• Audio output - 1 built-in speaker
• Bit rate audio compression - 64 Kbps
• Audio quality - Noise reduction and echo cancellation
• Volumeregeling - Verstelbaar

  Capaciteit
• User capacity - 2000
• Card capacity - 6000
• Capacity paired indoor station - 500
• Sub-door station capacity - 16

  Network parameters
• Network protocol - TCP/IP, RTSP

  Device interfaces
• Alarm input - 4 (standard 2 output buttons and 2 door contacts)
• Network interface - 1 RJ-45, 10/100 Mbps self-adaptive
• SABOTAGE - 1
• Exit button - 2 (2 for lock operation)
• RS-485 - 1 (1 for Hikvision's submodule communication)
• Lock control - 2 relays, Max. 30 V DC, 2 A

  General
• Button - 1
• Installation - Surface mount, flush mount
• Weight -
  - Net weight: 380 g
  - Gross weight: 541 g
• Protection level - IP65
• Operating temperature - -40 °C to 60 °C (-40 °F to 140 °F)
• Power supply - 12 VDC, 500 mA, IEEE 802.3af, PoE
• Application environment - Outdoor
• Power consumption - ≤ 5 W
• Language -
  - English, French, Portuguese, Brazilian Portuguese, Spanish,
  - Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic,
  - Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian,
  - Serbian, Greek, Slovak


•
