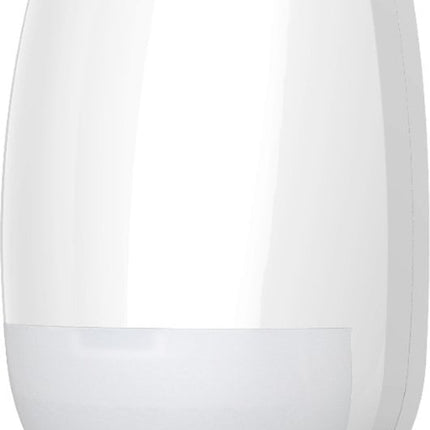

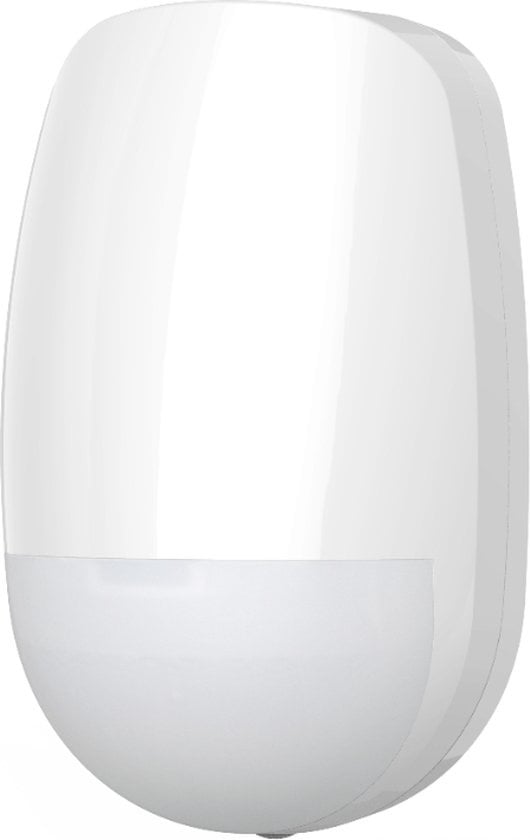

DS-PDD15AM-EG2, Wired Dual-tech AM detector

DS-PDD15AM-EG2, Wired Dual-tech AM detector Detection range: 15m / 85.9° Anti-masking, Anti-cloaking and Anti-blocking detection for higher security scenario Automatic... Read more

Delivery time 1 - 2 working days

€84,30€69,67 -19% -19%
€68,42€56,55 Incl. VATExcl. VAT

    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • PayPal
    • Union Pay
    • Visa

    Commande des installateurs B2B avec remise

    • The best service and warranty
    • Free returns within 14 days
    • Free remote installation

    Size chart

    DS-PDD15AM-EG2, Wired Dual-tech AM detector

    • Detection range: 15m / 85.9°
    • Anti-masking, Anti-cloaking and Anti-blocking detection for higher security scenario
    • Automatic sensitivity and 24Ghz smart microwave
    • Digital temperature compensation and IFT technology

    Technical specifications:

    Detectie Prestaties

    • Detection Method Passive Infrared; Microwave
    • Detectiebereik 15m
    • Detectiehoek 85,9°
    • Detectiezones 52
    • Detectable speed 0.3 ~ 2 m/s
    • Gevoeligheid Auto; Laag
    • Witlichtfilter 6500lux
    • Microwave frequency 24 GHz (24.15 ~ 24.25 GHz)
    • Support for digital temperature compensation
    • Support for creep zone protection

    Support

    • Ondersteuning bij digitale verwerking
    • Verzegelde optische ondersteuning
    • Sabotagebeveiliging voorzijde
    • Ondersteuning tegen maskering
    • Ondersteuning tegen verhulling
    • Ondersteuning tegen blokkering

    Koppel

    • Alarmuitgang Normaal Gesloten
    • LED indicator green (PIR), red (microwave), blue (alarm)

    Overdragen

    • Overdrachtsmethode Bedraad

    Elektrische kenmerken

    • Power supply 9 to 16 VDC
    • Typical voltage 12 VDC
    • Stroomverbruik 25mA Max
    • Algemeen
    • Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
    • Storage temperature -20 °C to 60 °C (-4 °F to 140 °F)
    • Bedrijfsvochtigheid 10% tot 90%
    • Dimensions (WxHxD) 65.7 mm (2.59") × 103.8 mm (4.09") × 45.5 mm (1.79")
    • 100g
    • Mounting height 1.8 m to 2.4 m
    • Montagemethode Muur
    • Toepassingsscenario Binnen
    • Bracket Optional wall and ceiling accessory
