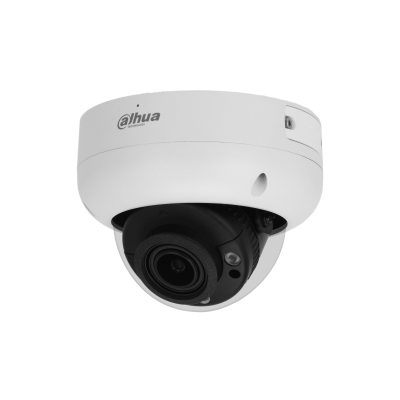

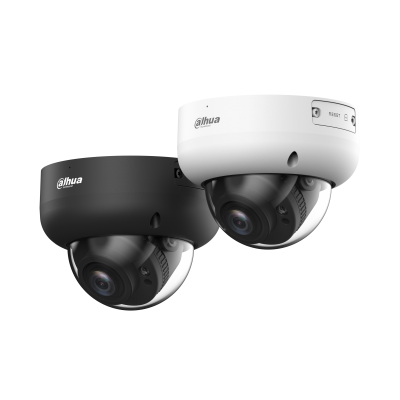

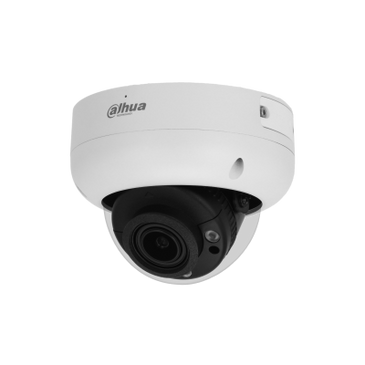

IPC-HDBW2841R-ZAS 8MP 2.7-13.5mm zoom lens | Wizsense | PoE | Micro SD slot
This security camera is part of the WizSense series, consisting of cameras that apply smart detection functions and a deep learning algorithm for increased reliability. Using its built-in video analysis functions, the Dahua DH-IPC-HDBW2841RP-ZAS can detect and analyze moving objects. For example, the camera responds to motion detection or when someone crosses a set line. The intelligent algorithm ensures that the camera responds only to people and vehicles, minimizing the chance of false alarms.
You can use the Dahua DH-IPC-HDBW2841R-ZAS in various indoor and outdoor situations. The sturdy housing (IP67) provides protection against moisture and dust and ensures that the camera is also weatherproof. In addition, the camera has the highest certification for impact resistance (IK10), making it vandal-resistant.
Video recordings from the Dahua DH-IPC-HDBW2841R-ZAS can be monitored live via the Dahua web interface, as well as stored locally on an SD/SDHC/SDXC card (up to 256 GB), NAS or NVR. To reduce file size, the Dahua DH-IPC-HDBW3841R-ZAS-S2 applies H.265+ image compression. This technique is as much as twice as efficient as H.264 and otherwise does not affect image quality.
You can power the Dahua camera with a 12V DC power adapter (not included) or via PoE (802.3af). The advantage of PoE is that you only need one cable to supply the camera with network connection and power, and you do not need to connect it separately to a power outlet. To power the camera via PoE, however, you still need a PoE injector or PoE switch.
Specifications:
| Number of image sensors: |
1 |
| Image sensor: |
1/2.8 |
| Resolution: |
3840 x 2160 |
| Number of pixels: |
8MP |
| Minimum illumination strength (in color): |
0.007 Lux |
| Minimum illumination strength (LED on (black/white)): |
0 Lux |
| Illumination: |
IR |
| LED distance: |
up to 40m |
| LED On/Off (Day/Night): |
Auto/Manual |
| Number of LED(s): |
2 LED |
| Shutter speed: |
1/3 ~ 1/100000s |
| Noise reduction: |
3DNR |
| Video Output: |
No |
| Lens Type: |
Motor Zoom Lens |
| Iris: |
Fixed Iris |
| Focal Length: |
2.7mm ~ 13.5mm |
| Maximum aperture: |
F1.5 |
| Horizontal aperture angle: |
109° ~ 30° |
| Vertical aperture angle: |
56° ~ 17° |
| Focus control: |
Auto/Manual |
| Stream capability: |
3 streams |
| Video compression: |
H.264, H.264 +, H.264 B, H.264 H, H.265, H.265 +, MJPEG |
| Footage per second (Main stream): |
25fps @3840 × 2160 |
| 2nd stream: |
25fps @704 × 576 |
| 3rd stream: |
25fps @1920 × 1080 |
| Bitrate: |
H.264: 3 Kbps ~ 8192 Kbps, H.265: 3 Kbps ~ 8192 Kbps |
| Day/Night: |
Auto (filter), Color, Black/White |
| Light compensation: |
BLC, HLC, WDR(120dB) |
| Motion detection: |
On/Off |
| |
|
| Smart Features: |
AI Perimeter Protection |
| |
AI Motion detection |
| Smart IR: |
Yes |
| Electronic Image Stabilization(EIS): |
No |
| Defog: |
No |
| Privacy masking: |
Yes |
| Built-in microphone: |
No |
| Audio input: |
Yes |
| Audio Output: |
Yes |
| Audio Compression: |
AAC, G.711 A, G.711 MU, G.726 |
| Ethernet: |
RJ-45 (10/100Base-T) |
| Storage option SD card: |
Yes |
| Maximum Storage Capacity SD card: |
256 GB |
| RS-485: |
No |
| Alarm: |
No |
| Number of channels in: |
1x Max 5mA 3V-5V DC |
| Number of channels out: |
1x Max 300mA 12V DC |
| power supply included: |
No |
| Power supply: |
12V DC, PoE (Type IEEE 802.3af) |
| Max Consumption: |
Base: 4 W (12 VDC); 4.9 W (PoE) Maximum (WDR + IR intensity + Intelligence): 9.2 W (12 VDC); 10.5 W (PoE) |
| Operating temperature: |
-30°C ~ 60°C |
| Waterproofing: |
IP67 |
| Vandal resistant: |
IK10 |
| Material |
Metal |
| Diameter |
Ø122mm |
| Height |
88.9mm |
| Weight: |
0.492 Kg |
