HWN-4216MH-16P, 16 Channel 8Mp 4K NVR, PoE

Notice! Hard disk is not included.

Hikvision network recorder (NVR) that has 16 channels to connect IP cameras with image quality up to 4K (8 Megapixel). The NVR recorder has a built-in PoE switch making it possible to power the cameras directly over the network cable. The recorder has 1 HDMI input for displaying images of up to 4K on a monitor and 1 VGA input for streaming images up to Full HD. The Hikvision NVR recorder supports a maximum resolution of 8 megapixels.

Specifications:

• Motion detection 2.0 - Human/Vehicle analysis 4-channels


Video and Audio

• IP video input 16-channels

• Incoming bandwidth 160 Mbps

• Outgoing bandwidth 80 Mbps

• HDMI Output

  • 1-channel, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz

• VGA output

  • 1-channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

• Video output mode HDMI/VGA simultaneous output

• Audio output 1-channel, RCA (Linear, 1 KΩ)

• Two-way audio 1-channel, RCA (2.0 Vp-p, 1 KΩ)

Decoding

• Decoding format H.265+, H.265, H.264+, H.264

• Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

• Synchronous playback 16 channels

• Decoding capability 1-channel@8 MP (30 fps)/3-channels@4 MP (30 fps)/6-channels@1080p (30 fps)

• Stream type Video, Video & Audio

• Audio Compression G.711ulaw/G.711alaw/G.722/G.726

Network

• External connections 32

• Network protocols:

  • TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

• Network interface 1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface 16 × RJ-45 10/100 Mbps self-adaptive Ethernet interface

• Power ≤ 150 W

• Standard IEEE 802.3 af/at

Auxiliary connections

• SATA 2 SATA interfaces

• Capacity Up to 8 TB per drive

• Alarm In/Out N/A.

• USB interface 2 × USB 2.0

General

• Power supply voltage 100 to 240 VAC, 50 to 60 Hz

• Consumption ≤ 15 W (without HDD and PoE disabled)

• Operating temperature -10 °C to 55 °C (14 °F to 131 °F)

• Working humidity 10% to 90%

• Housing 1U chassis

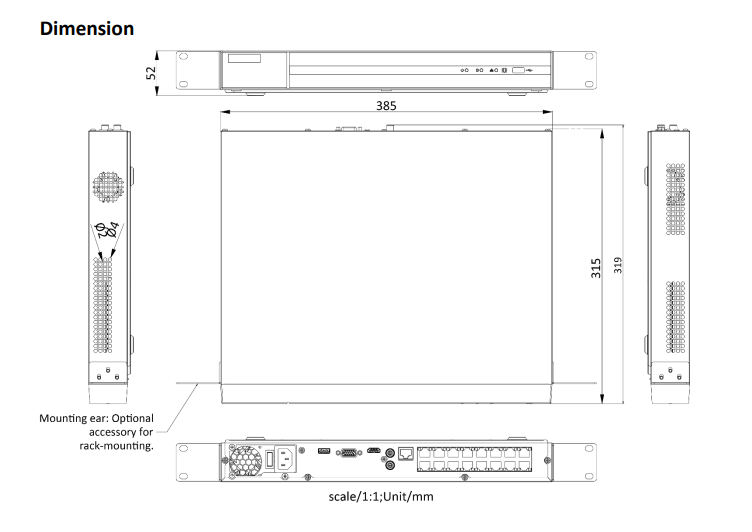

• Dimensions (W × D × H) 385 × 315 × 52 mm (15.2" × 12.4" × 2.0")

• Weight ≤ 2.6 kg (without HDD, 5.7 lb.)

Certification

• FCC Part 15 Subpart B, ANSI C63.4-2014

• CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
