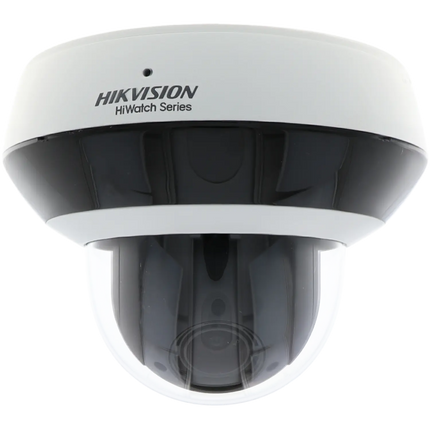

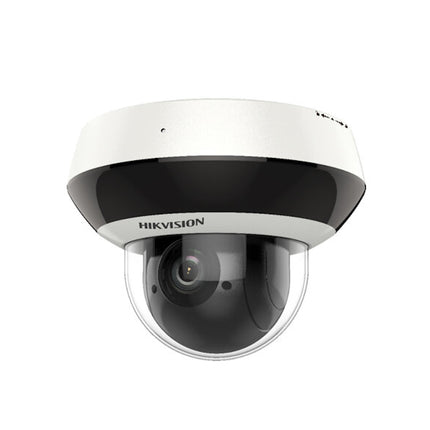

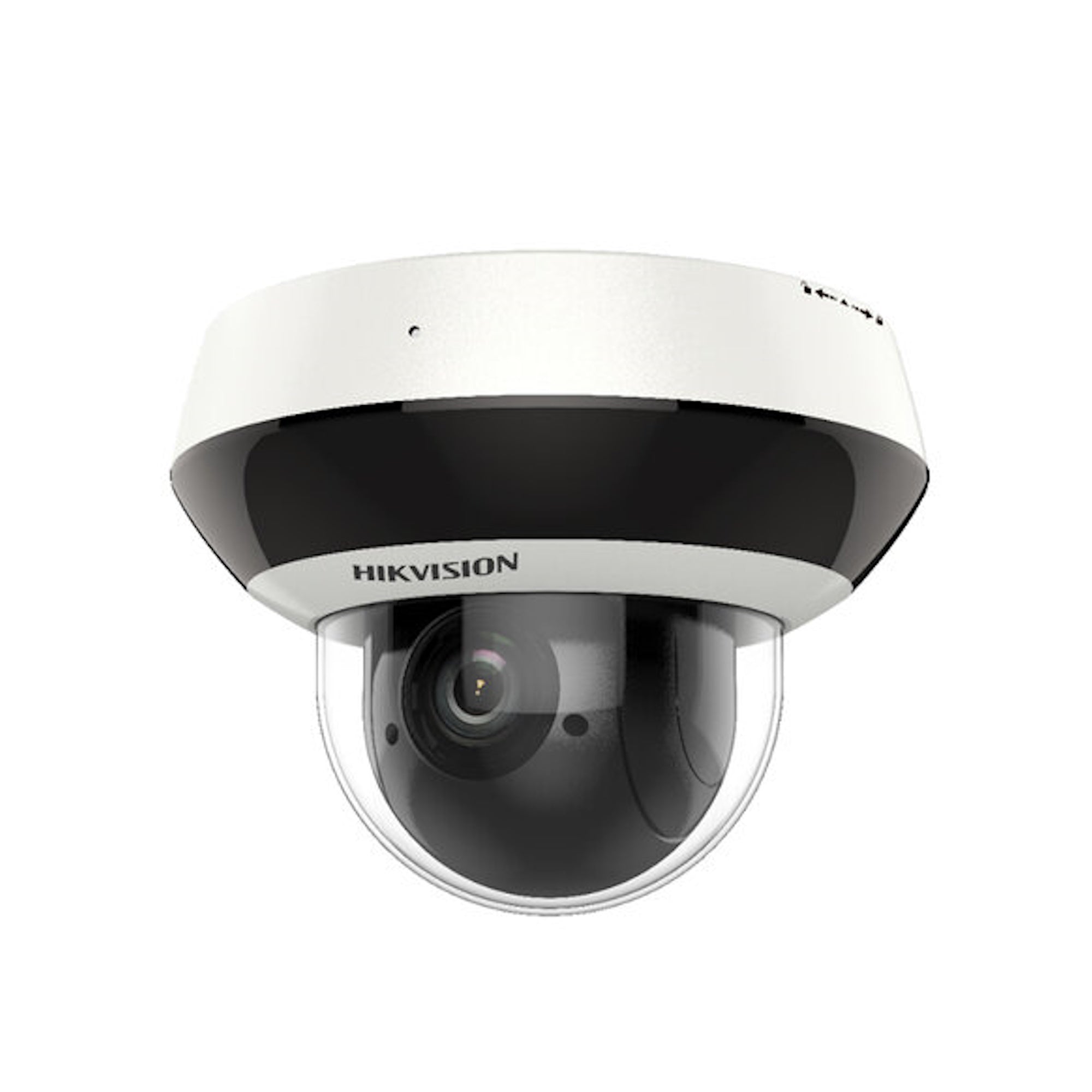

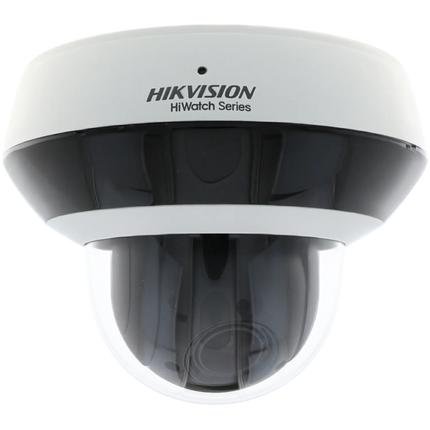

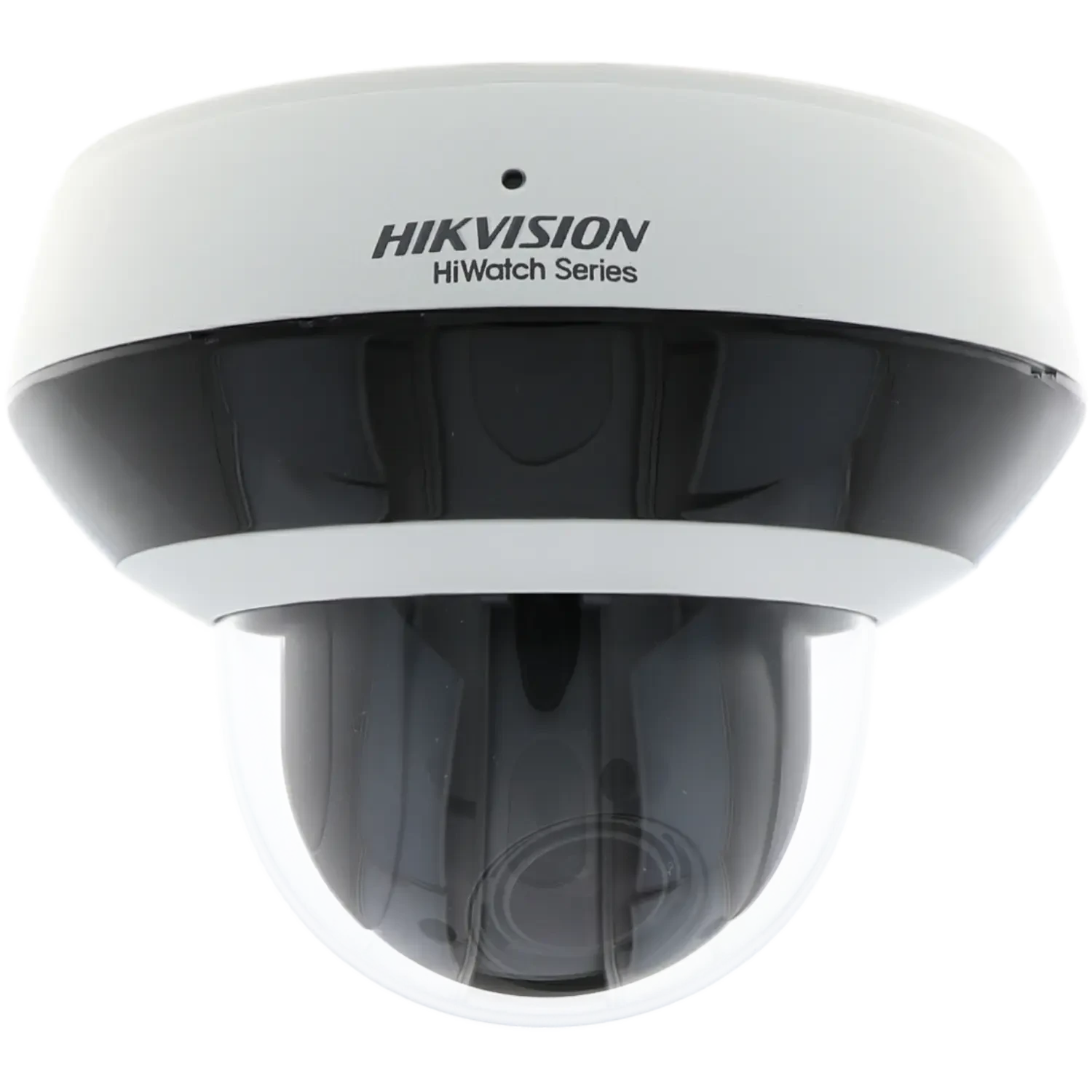

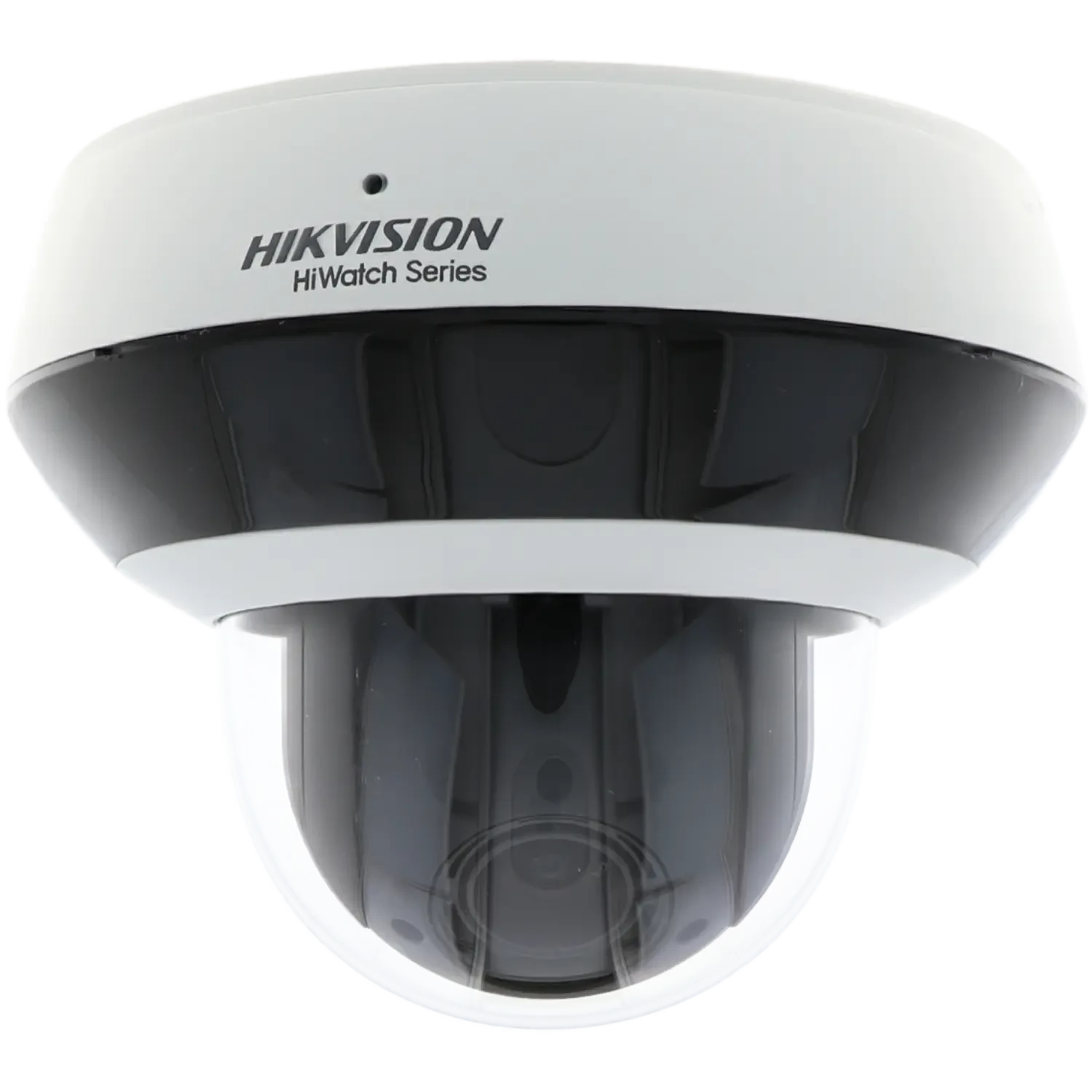

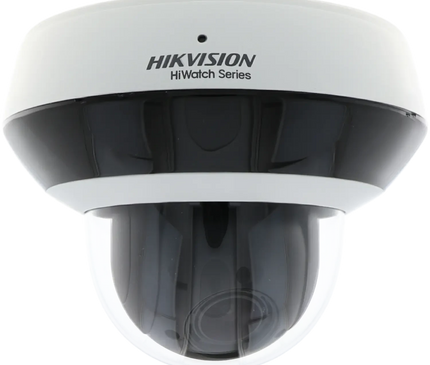

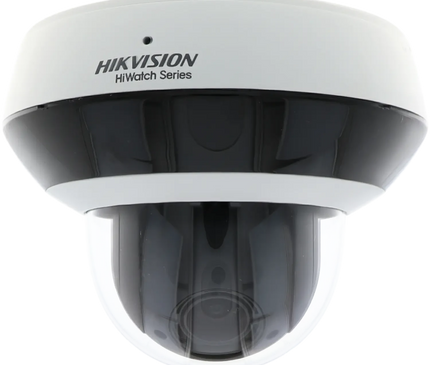

HWP-N2404IH-DE3, 4MP PTZ Camera, 4x optical zoom, PoE and SD Card slot

The 4MP Hikvision HWP-N2404IH-DE3 is a professional motorized PTZ outdoor ip camera of 4 megapixels with 2560 × 1440P resolution and 4x optical zoom. The camera can rotate, tilt, zoom (PTZ) and features a microSD slot for image recording. Also, this PTZ camera has IR illumination so it can see very well in the dark up to 20 meters. The camera equipped with a 1 / 2.8" CMOS sensor progressive scan, varifocal lens of 2.8 - 12 mm, 120 dB WDR and supports H.265+ video compression. Thanks to its IP66 certification, the camera is suitable for outdoor use and is vandal-resistant (IK10 rating). With the Hik-Connect app, you can see what's happening at home 24/7 from any location via your smartphone.

• Two-inch 4 MP camera with pan, tilt and zoom function (4x)
• Efficient H.265+ compression technology to save bandwidth and storage
• Clear imaging against strong backlight thanks to 120 dB true WDR technology
• Excellent nighttime performance with enhanced IR up to 20 m
• Water and dust resistant (IP66) and vandal resistant (IK10)

Specifications:

• Lens

  • FOV
    • Horizontal field of view: 100° to 33° (Wide-Telescope)
    • Vertical field of view: 53° to 18° (Wide-Telescope)
    • Diagonal field of view: 119° to 37.5° (Wide-Telescope)
  • Focal Length
    2.8 mm to 12 mm, 4× optical zoom
  • Zoom speed
    Approximately 2 s (optical lens, wide-telescope)
  • Working distance
    10 mm to 1500 mm (wide-telescope)
  • Aperture range
    F1.6 to F2.7
  • Smart features
    • Basic event detection
      Motion detection, video processing detection, exception
    • Smart detection
      Face detection, intrusion detection, line crossing detection, region access detection, region exit detection, object removal detection, abandoned luggage detection, audio exception detection
    • Smart recording
      ANR (Automatic Network Replenishment), Dual-VCA
  • ROI
    Main stream, sub-stream and third stream support two fixed areas, respectively.

• Network

  • Security measures
    User authentication (ID and password), host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access; IP address filtering
  • Network storage
    Integrated memory card slot, supports Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/CIPS), ANR
  • Protocols
    IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • API
    Open, supports ONVIF, ISAPI and CGI, supports HIKVISION SDK and Third-Party Management Platform, supports Hik-Connect
  • Simultaneous live view
    Up to 20 channels
  • User/Host
    Up to 32 users, 3 levels: Administrator, Operator and User
  • Client
    iVMS-4200, HikCentral Pro, Hik-Connect
  • Web Browser
    IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51

• Video

  • Max. Resolution
    2560 × 1440
  • Image
    • Image Enhancement
      3D DNR, BLC, HLC, EIS, Regional Exposure, Regional Focus
  • Sub-stream
    50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Main stream
    50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720), 60Hz: 24fps (2560 × 1440), 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Third stream
    50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

• Interface

  • Audio input
    1-channel audio input
  • Audio output
    1-channel audio output
  • Network connection
    1 RJ45 10 M/100 M Ethernet, PoE
  • Built-in microphone
    1 built-in microphone, captures sounds in a radius of up to 5 meters

• Camera Module

  • Image sensor
    1/3" progressive scan CMOS
  • Minimum exposure
    Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
  • White balance
    Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Needle Lamp
  • Gain
    Auto/Manual
  • Shutter speed
    50Hz: 1/1 s to 1/30,000 s, 60Hz: 1/1 s to 1/30,000 s
  • Day & Night
    IR Cut Filter
  • Digital zoom
    16×
  • Privacy Mask
    24 programmable privacy masks
  • Focus mode
    Auto/Semi-Auto/Manual
  • WDR
    120 dB WDR

• General

  • Material
    Aluminum alloy, PC, PC+ABS
  • Dimensions
    Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")
  • Weight
    Approximately 0.53 kg (1.17 lb)
  • Protection level
    IP66 Standard, IK10, TVS 4000V Lightning protection, Voltage surge protection and Voltage fluctuation protection
  • Power supply
    12 VDC, 1.5 A (Max. 9.9 W, including max. 4.2 W for IR)
    PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 11.2 W, including max. 4.2 W for IR)
  • Operating temperature
    -20°C to 60°C (-4°F to 140°F)
  • Working humidity
    ≤ 90%
  • Supplemental light
    IR distance: 20 m
    Smart IR: Support

• PTZ

  • Motion Range (Pan)
    0° to 330°
  • Pan speed
    Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s
  • Movement range (Tilt)
    From 0° to 90°
  • Tilt speed
    Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s
  • Proportional zoom
    Support
  • Presets
    300
  • Power-off memory
    Support

• Compression standard

  • H.264+
    Support
  • H.265+
    Support
  • H.264 Type
    Baseline Profile/Main Profile/High Profile
  • Video Compression
    Main Stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG
  • H.265 Type
    Main Profile
  • Video Bitrate
    32 Kbps to 16384 Kbps
  • Audio Compression
    G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • Audio Bitrate
    64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2)
  • SVC
    Support
