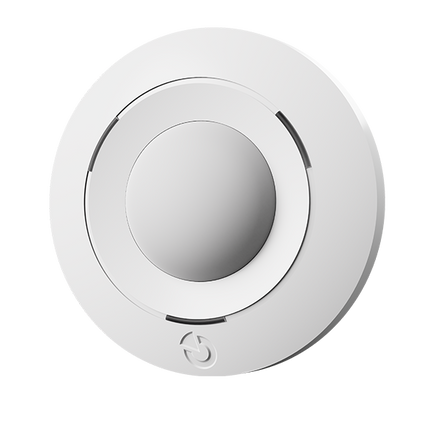

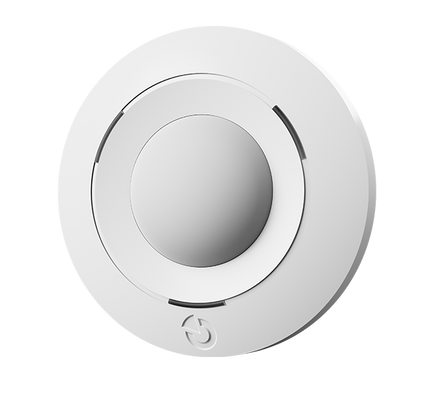

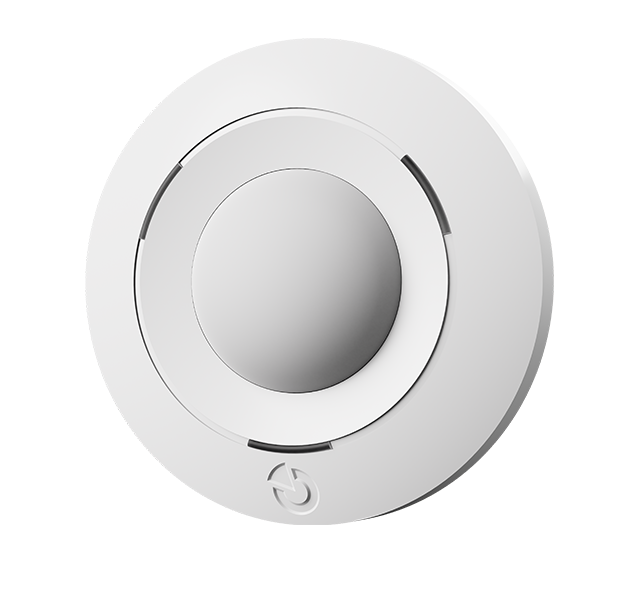

    JA-155P, motion detector PIR Ceiling

    This detector is designed to detect human body motion in buildings
    The product is installed on the ceiling and its guaranteed detection range is 360° with a recording radius of up to 5.5 m at a mounting height of 3.5 m
    The resistance to false alarms can be set to two levels
    The detector has a pulse response and occupies one position in the system

    Note!!! Only works on the JA-103 and JA-107 control panels

    Specifications:

    Power 2x lithium batteries, type CR123A (3 V/1500 mAh)
    Warning: batteries are not included.
    Number of batteries 1x CR123A 2x CR123A
    Lifetime (Smartwatch mode) 2 years 4 years
    Low battery voltage < 2.4 V
    Communication band 868.1 MHz, JABLOTRON protocol
    RF range up to 300 m (open area)
    Recommended installation height 2.5 - 3.5 m above the ground level
    Detection coverage 360°/11 m (installation height - 3.5 m)
    Dimmensions Ø 125 x 40 mm
    Weight (without batteries) 124 g
    Classification security grade 2/II. Indoor general (according to EN 50131-1)
    Operational environment indoor general
    Operational temperature range -10 °C to +40 °C
    Average operational humidity 75 % RH, non-condensing
    Certification body Trezor Test s.r.o. (no. 3025)
    Complies with EN 50131-1 ed. 2+A1+A2, EN 50131-2-2, EN 50131-5-3+A1, ETSI EN 300 220-1,-2, EN 50130-4 ed. 2+A1, EN 55032, EN 62368-1, EN 50581
    Can be operated according to ERC REC 70-03
