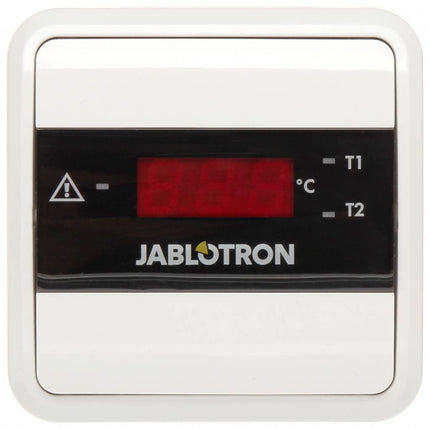

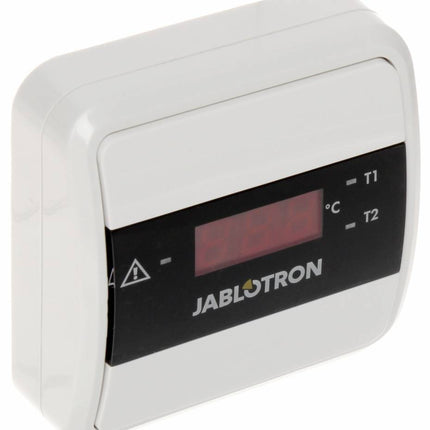

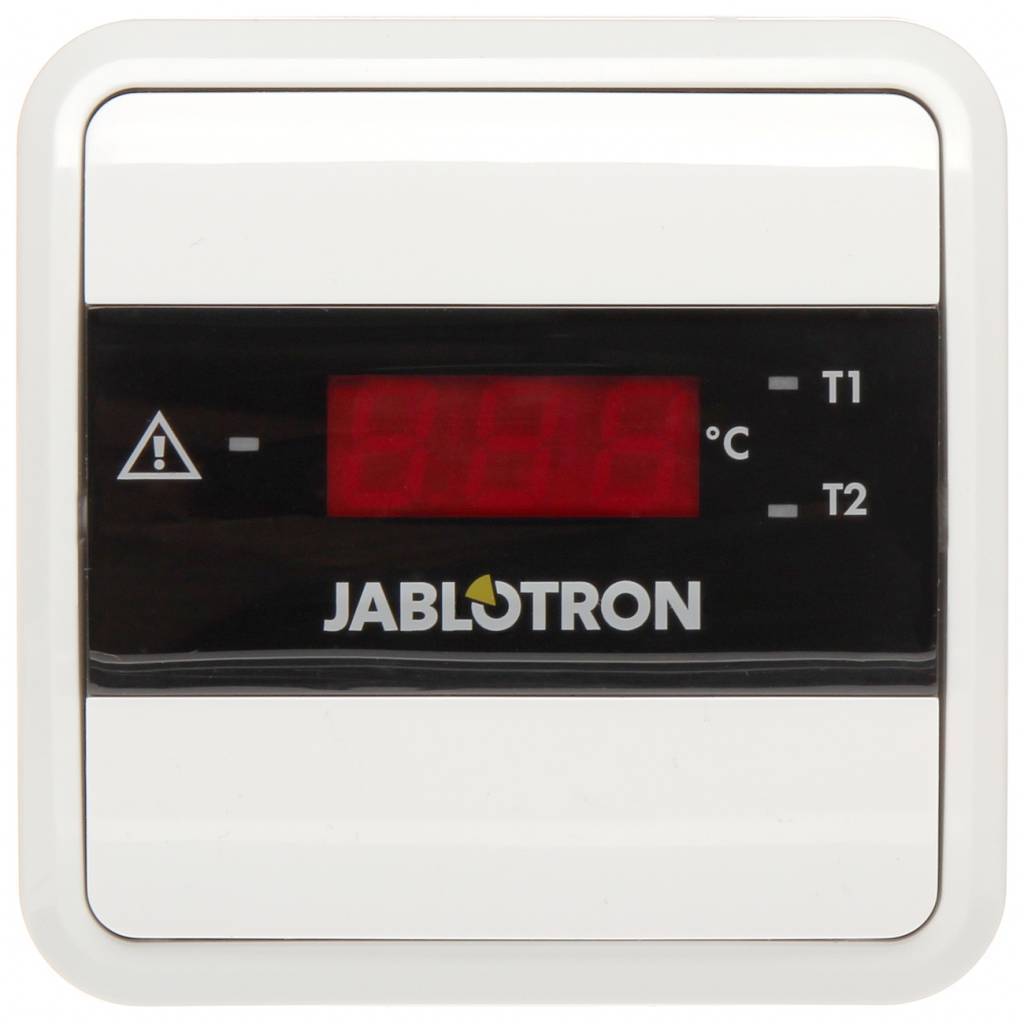

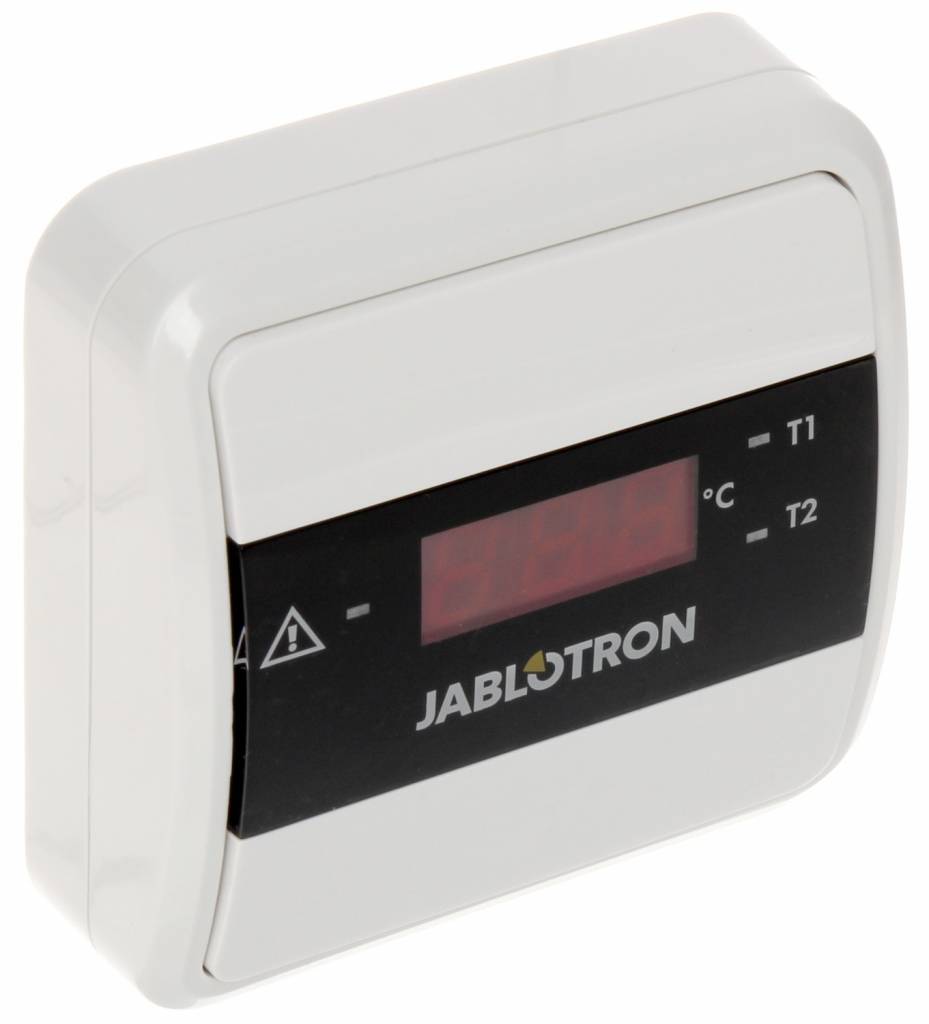

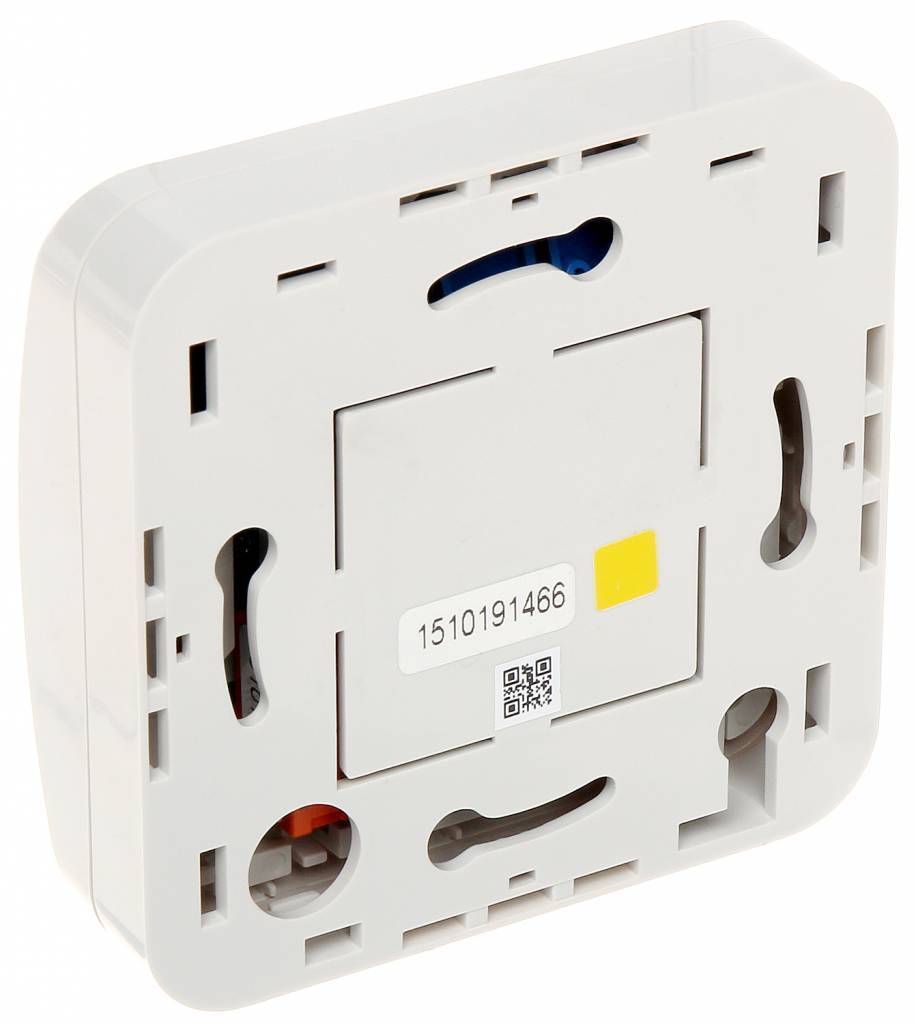

    TM-201A, Multifunctional electronic thermometer

    The TM-201A multifunctional electronic thermometer can be used in all installations where one or two temperature values have to be measured with a follow-up action, closing or opening a relay. The thermometer is equipped with warning indication (optical and acoustic).

    It can typically be used as a safety thermometer, bistable or differential thermostat. The package does not include the sensors and power supply.

    Temperature sensors are used for the TM-201A, the CP-201T (two pieces in the package) or CP-201T-NW (one piece in the package). The DE06-12 power supply can be used as a 12V mains supply.

    ? Supply voltage: 11 to 17V DC
    ? Standby consumption / maximum consumption: 20mA / 50 mA
    ? Measuring range: -40 °C to 125 °C
    ? Temperature sensor type: NTC 10kΩ, B25 / 100 = 3455 K
    ? Operating temperature range: -10 °C to +40 °C

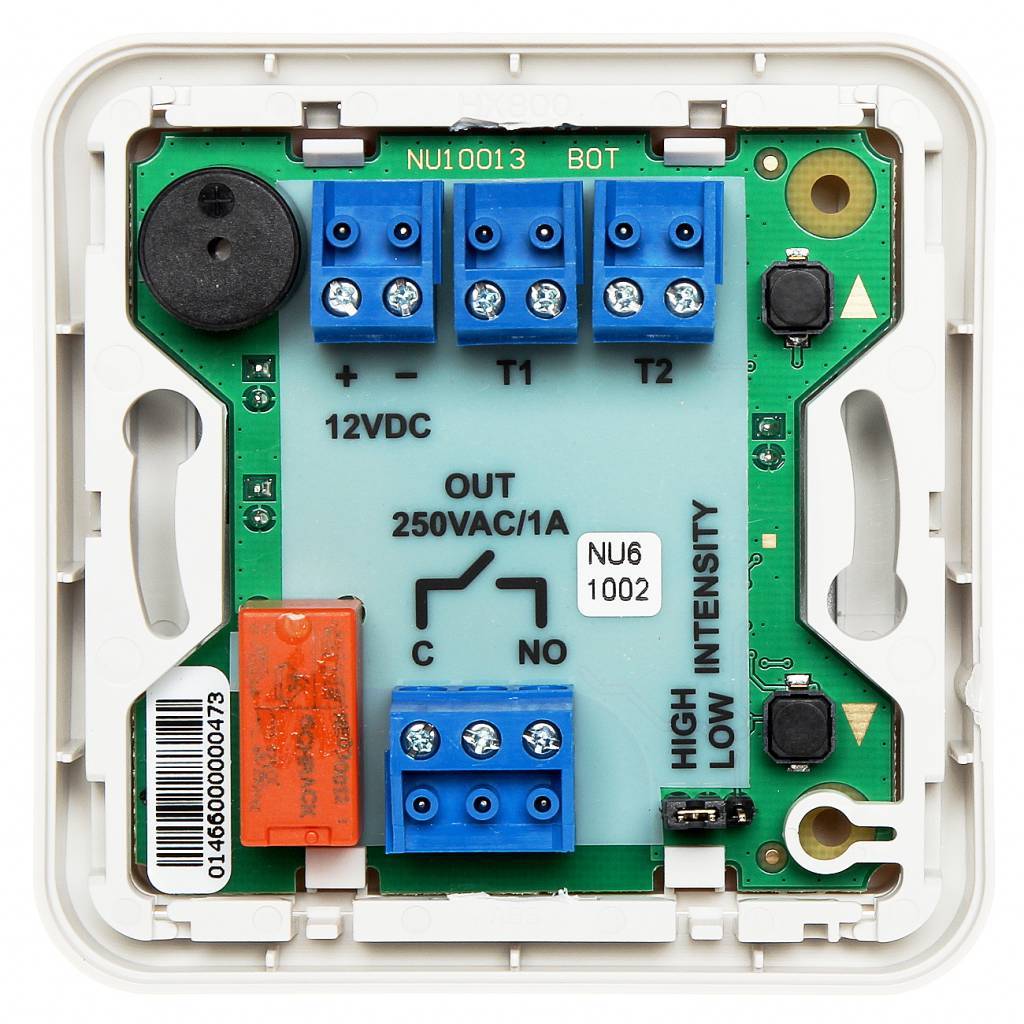

    ? Output OUT: switching contact, max. 1A at 250V, resistive load 6A, protective class II

    ?
