Product form

POE-E101 PoE extender up to 100mtr

Planet POE-E101 PoE extender up to 100mtr. Power over Ethernet Extender. 100/200/300M extender, 100Mbit/s, standard PoE. The Planet PoE Extender offers... Read more

Delivery time 1 - 2 working days

€68,42€56,55 Incl. VATExcl. VAT

    Cheaper somewhere else?

    Lowest price guarantee

    With our lowest price guarantee, you no longer have to compare, we already do that for you. Find the exact same product cheaper elsewhere before you buy? Let us know and we will adjust our price.

    The small print

    • The product has the same specifications and color.
    • The product is sold by a Dutch brand dealer (warranty included).
    • The product is available from stock. You can pick it up immediately or it will be delivered to your home the next day.
    • The price guarantee is given on the sale price, without shipping costs or other services.
    • The lowest price guarantee is valid until the moment of purchase.

    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • PayPal
    • Union Pay
    • Visa
    Commande des installateurs B2B avec remise

    Enregistrer une entreprise B2B

    Vous êtes un installateur professionnel à la recherche de nouvelles opportunités et de partenariats à long terme ? Rejoignez notre réseau croissant d'installateurs B2B fiables !

    Qu'est-ce que nous vous offrons ?
    - Accès à des produits et des projets de haute qualité
    - Des marges et des conditions d'achat intéressantes
    - Support technique et formation
    - Un partenariat fiable

    Il est facile de s'inscrire :
    Remplissez le formulaire en ligne et nous vous contacterons rapidement pour un premier entretien.

    Ensemble, nous ferons de chaque projet une réussite.
    Inscrivez-vous dès aujourd'hui et grandissez avec nous !

    • The best service and warranty
    • Free returns within 14 days
    • Free remote installation

    Size chart

    Planet POE-E101 PoE extender up to 100mtr.

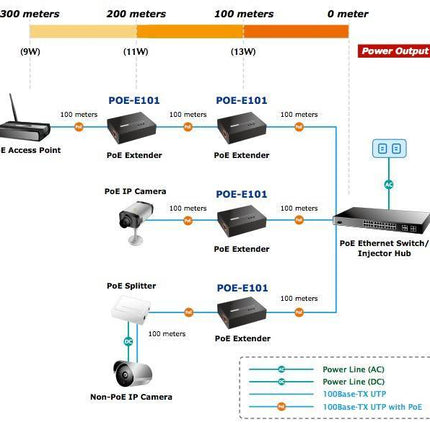

    Power over Ethernet Extender. 100/200/300M extender, 100Mbit/s, standard PoE. The Planet PoE Extender offers a solution when the cabling from the switch to the IP camera exceeds 100m.
    By installing this box after 100m, a total distance of up to 200m can be achieved, without intervention of external power supplies etc. The PoE-E101 is suitable for 100Mbit/s networks i.c.w. with standard PoE equipment.-808P 8 ports Switch (8xPoE), 10/100Mbit/s desktop model, ideal for connecting and powering Hikvision IP cameras.

    LAN IN 1 x 10/100Base-TX Ethernet with IEEE 802.3af PoE "Data + DC" in
    Auto MDI/MDI-X, auto-negotiation RJ-45 connector
    LAN OUT 1 x 10/100Base-TX Ethernet with IEEE 802.3af PoE "Data + DC" out
    Auto MDI/MDI-X, auto-negotiation RJ-45 connector
    Power over Ethernet
    PoE Standard IEEE 802.3af Power over Ethernet
    PoE Power Supply Type Mid-Span / Type B
    PoE Power Output 48V DC, 270mA, Max. 13Watts
    Power Pin Assignment 4/5(+), 7/8(-)
    Maximum Distance Class 1 (3.8 watts): 300m
    Class 2 (6.5 watts): 300m
    Class 3 (12.9 watts): 200m
    Non-PoE (Data): 300m
    Hardware Specifications
    Hardware Version Version 2
    Data Rate 10/100Mbps
    Switch Architecture Store-and-Forward
    Switch Throughput 148810pps@64Bytes
    Latency 7.840µs
    Maximum Frame Size 1552Bytes
    Flow Control Back pressure for half-duplex
    IEEE 802.3x pause frame for full-duplex
    LED Indicators 1 x PoE IN (Green)
    1 x LAN Data (Green)
    1 x PoE OUT (Green)
    Protection ESD(Ethernet) : 6KV
    Surge (EFT for power) : 6KV
    Dimensions (W x D x H) 94 x 70 x 26 mm
    Weight 215g
    Power Requirements IEEE 802.3af compliant with voltage within 44V-56V DC
    Power Consumption 2 watts (maximum)
    Mechanical Metal / wall mountable and optional DIN-rail kit for installation
    Cable TIA / EIA-568, Category 5/5e cable
    Standards Conformance
    Regulation Compliance FCC Part 15 Class A, CE
    Standard Compliance IEEE 802.3 10Base-T Ethernet
    IEEE 802.3u 10/100Base-TX Fast Ethernet
    IEEE 802.3af Power over Ethernet PSE / Mid-Span
    IEEE 802.3af Power over Ethernet PD / Mid-Span
    IEEE 802.3x Flow Control
    Environment
    Operating Temperature: 0 ~ 50 degrees C
    Relative Humidity: 0 ~ 95% (non-condensing)
    Storage Temperature: -10 ~ 85 degrees C
    Relative Humidity: 5 ~ 95% (non-condensing)


    Klik hier voor de Brochure (pdf)
