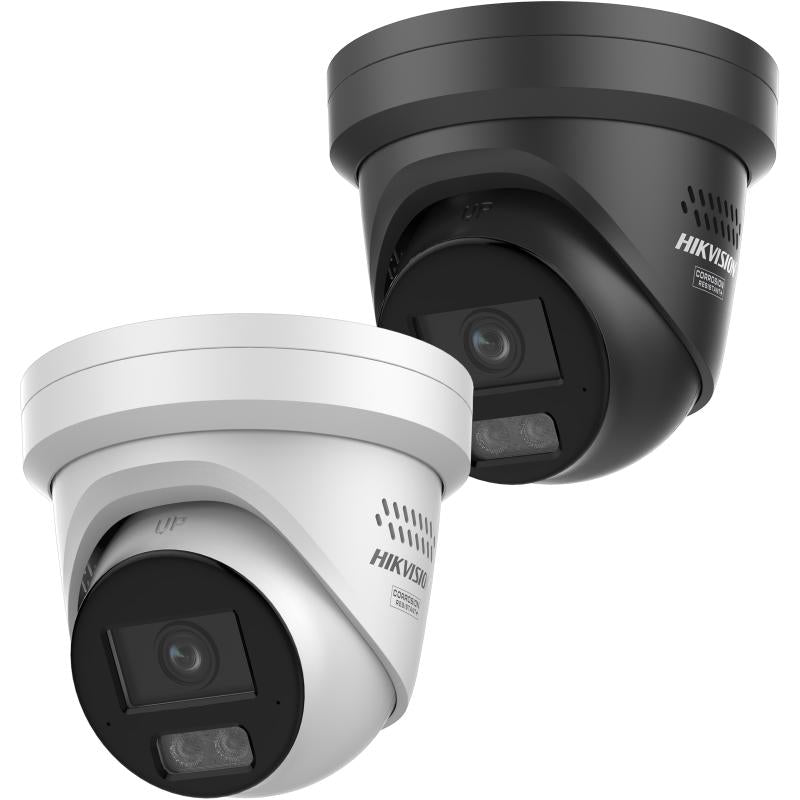

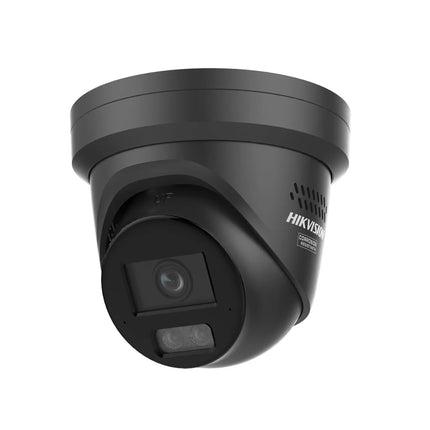

Hikvision ColorVu 3.0 Hybrid offers the freedom to choose or combine: 3 functions in 1 camera. This camera series is suitable both as a day/night camera and for 24/7 colour imaging. The combination of ColorVu technology with IR functionality makes the camera versatile. Thanks to its super aperture and highly light-sensitive sensor, this camera delivers unrivalled image quality, even in low light. Advanced noise reduction and an innovative light compensation function (Auto WDR) ensure a clear and balanced image under all conditions.

With Smart Hybrid Light, the camera automatically switches between lighting modes. In low-light situations, night mode with IR illumination is activated. Upon detection of a person or vehicle, the camera immediately switches to colour mode with white LED backlighting. This optimally highlights the scene, displays objects in colour and creates a deterrent effect for unwanted visitors.

• High-resolution 8MP 4K camera with 25fps
• 24/7 colourful images with enhanced ColorVu technology
• HikAI-ISP for superior noise reduction and sharper details
• Automatic WDR to prevent overexposure and loss of detail
• Smart hybrid lighting smartly switches between night vision with IR and colour vision
• Person and vehicle detection Acusense 2.0 technology for targeted security
• Arrayed Dual-Mic for enhanced sound recording and speech clarity
• Smart PA Speaker for powerful two-way audio
• Anti-corrosion design (NEMA4X) for robust performance in various conditions
• IP67 and IK10 ratings for water and vandal resistance

Specificaties:

• Camera

  • Imaging sensor: 1/1.8" Progressive Scan CMOS
  • Max. Resolution: 3840 × 2160
  • Minimum Illumination:
    • Colour: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
  • Shutter speed: 1 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle adjustment:
    • Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°

• Lens

  • Lens type: Fixed focal length lens, 2.8 and 4 mm optional
  • Focal length & FOV:
    • 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°
    • 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
  • Lensmontage: M16
  • Aperture Type: Fixed
  • Diafragma: F1.0
  • Depth of Field:
    • 2.8 mm: 3.3 m to ∞
    • 4 mm: 3.8 m to ∞
  • DORI:
    • 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
    • 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

• Verlichtingsapparaat

  • Type of Additional Illumination: White light, IR
  • Range Supplementary Lighting: Up to 30 m
  • Smart Supplementary Lighting: Yes
  • IR Wavelength: 850 nm

• Video

  • Hoofdstroom

    • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    • 60 Hz: 30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • Substream

    • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

  • Derde Stroom

    • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • Third stream is supported under certain settings.

  • Videocompressie

    • Hoofdstroom: H.265/H.264/H.264+/H.265+
    • Substream: H.265/H.264/MJPEG
    • Third stream: H.265/H.264
    • Third stream is supported under certain settings.

  • Video Bitrate: 32 Kbps to 16 Mbps

  • H.264 Type: Baseline Profile, Main Profile, High Profile

  • H.265 Type: Main Profile

  • Bitrate Controle: CBR, VBR

    .

  • Scalable Video Coding (SVC): H.264 and H.265 encoding

  • Region of Interest (ROI): 1 fixed region for the main stream

• Audio

  • Audio type: Mono sound
  • Audiocompressie: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audiobitrate:
    • 64 Kbps (G.711ulaw/G.711alaw)
    • 16 Kbps (G.722.1)
    • 16 Kbps (G.726)
    • 32 to 192 Kbps (MP2L2)
    • 8 to 320 Kbps (MP3)
    • 16 to 64 Kbps (AAC-LC)
  • Audio sampling frequency: 8 kHz/16 kHz/32 kHz/48 kHz
  • Environmental noise filtering: Yes

• Netwerk

  • Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
  • Simultaneous Live View: Up to 6 channels
  • API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users
    • 3 user levels: Administrator, Operator, and User

• Beveiliging

  • Password protection, complex password, HTTPS encryption, 802.1X-authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, timeout settings check, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

• Netwerkopslag

  • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

• Client

  • iVMS-4200, Hik-Connect, Hik-Central

• Webbrowser

  • Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+
  • Local service: Chrome 80+, Firefox 80+, Edge 89+

• Beeld

  • Image settings: Rotation mode, saturation, brightness, contrast, sharpness, gain, white balance, customisable via client software or web browser
  • Day/Night Switch: Day, Night, Automatic, Schedule
  • Beeldverbetering: BLC, HLC, 3D DNR
  • SNR: ≥ 52 dB
  • Wide Dynamic Range (WDR): 130 dB
  • Privacy Mask: 4 programmable polygon privacy masks

• Interface

  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Ingebouwde Opslag: Built-in memory card slot, supports microSD/microSDHC/microSDXC card, up to 512GB
  • Built-in Speaker: Max power consumption: 2 W, max sound pressure level: 10 cm: 110 dB
  • Audio
    • Built-in Microphone: -2U: Arrayed dual-microphone, 1 input (line in), dual-core terminal block, max input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equivalent
    • 1 output (line out), two-core terminal block, max output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm

  • 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Resetknop: Ja

• Evenementen

  • Basis Evenement: Motion detection (supports alarm activation by specified target types (human and vehicle)), video-tamper alarm, exception
  • Slim Event: Detection of scene change
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger alarm output, trigger record, trigger capture, audible alert, flash light flash

• Deep Learning Function

  • Gezichtsherkenning: Ja
  • Perimeter protection: Line crossing, intrusion, region entry, region exit
  .
  • Supports alarm activation by specified target types (human and vehicle)

• Algemeen

  • Power supply: 12 VDC ± 25%, 1.29 A, max 15.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
  • PoE: IEEE 802.3at, Class 4, max 17 W
  • Materiaal: Housing: Metal, main material: Metal
  .
  • Dimensions: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
  • Packaging dimensions: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
  • Weight: Approximately 820 g (1.8 lb.)
  • Weight with packaging: Approximately 1200 g (2.6 lb.)
  • Opslagcondities: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
  • Start-up and Operating Conditions: -30 °
