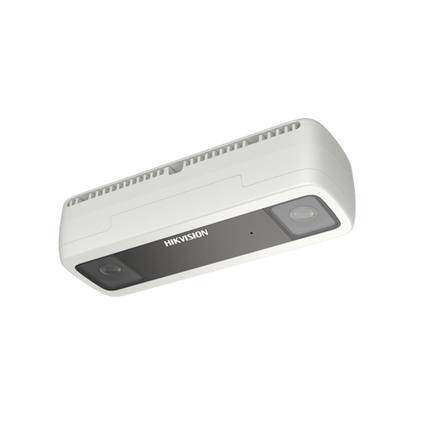

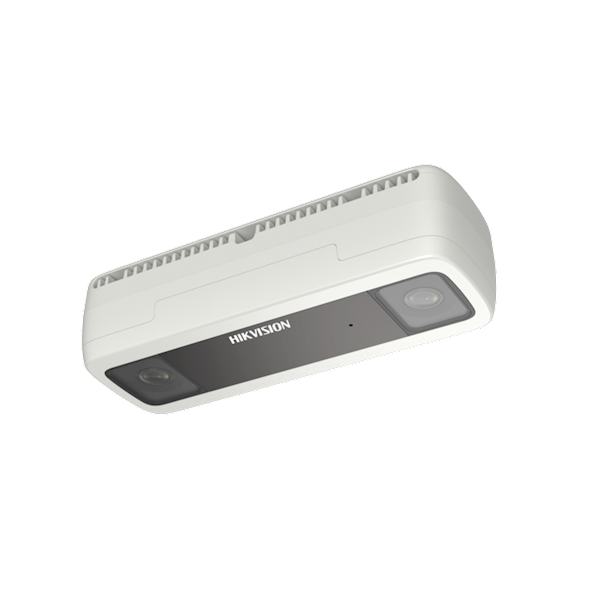

The people-counting network camera Hikvision DS-2CD6825G0/C-IVS incorporates deep learning algorithms and offers high accuracy, and with a dual-lens configuration that provides 3D imaging to distinguish people from inanimate objects and shadows, achieves over 97% accuracy. Besides excelling in ease of use, the DS-2CD6825G0/C-IVS camera also makes downloading and interpreting stored data easier than ever before.

Users can export the information to Excel and can display all the information daily, weekly, monthly or annually as required. This gives a very detailed overview of the number of people entering, leaving or passing through the premises during a given period.

Specificaties:

• Camera
• Image Sensor1/2.7" Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.0176 Lux @ (F2.25, AGC ON),B/W: 0.0035 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/25 s to 1/100,000 s
• Day & NightIR cut filter

• Lens
• Lens TypeFixed focal lens, 2 mm
• Focal Length & FOV2 mm, horizontal FOV 104.5°, vertical FOV 70.5°, diagonal FOV 112°
• Lens MountM12
• ApertureF2.25

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 6 m
• IR Wavelength850 nm

• Video
• Main Stream

  - 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  - 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  - 50 Hz: 25 fps (704 × 576, 640 × 480)

  - 60 Hz: 30 fps (704 × 480, 640 × 480)

• Video Compression

  - Main stream: H.265+/H.265/H.264+/H.264,

  - Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region of Interest (ROI)4 fixed region(s) for main stream and sub-stream

• Audio
• Audio Type-S: Mono sound
• Audio Compression-S: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate-S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering-S: Yes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Simultaneous Live ViewUp to 20 channels
• APIOpen Network Video Interface (Profile S, Profile G),ISAPI,SDK
• User/Host Up to 32 users 3 user levels: administrator, operator, and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
• ClientiVMS-4200,Hik-Connect
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

  Local service: Chrome 57.0+, Firefox 52.0+, Safari12+

• Image
• Image SettingsSaturation,brightness,contrast,sharpness,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger (-S)
• Wide Dynamic Range (WDR)120 dB
• Image EnhancementBLC,HLC,3D DNR,defog
• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in eMMC storage, up to 8 GB for people counting data
• Built-in MicrophoneYes
• Audio

  -S: 1 input (line in), two-core terminal block, max input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

  -S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm-S: 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
• RS-485-S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

• Event
• Basic EventMotion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
• LinkageUpload to FTP/NAS/memory card,notify surveillance centre,send email,trigger recording,trigger capture

• Deep Learning Function
• People Counting

  Counts people entering and exiting separately

  Supports real-time uploading and uploading by statistic cycle

  Sends email reports on daily, weekly, monthly or annually basis

  Supports target filtering by height

• General
• Power

  - 12 VDC ± 20%, 0.58 A, max 7.0 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  - PoE: 802.3af, Type 1, Class 3, 36 V to 57 V, 0.24 A to 0.15 A, max. 8.5 W

• MaterialFront cover: plastic, camera body: metal
• Dimension168 mm × 61 mm × 41 mm (6.6" × 2.4" × 1.6")
• Package Dimension235 mm × 120 mm × 125 mm (9.2" × 4.7" × 4.9")
• WeightApprox. 435 g (1 lb.)
• With Package WeightApprox. 835 g (1.6 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 144 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions
