Product form

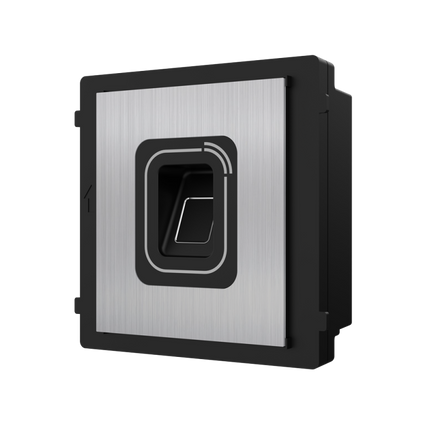

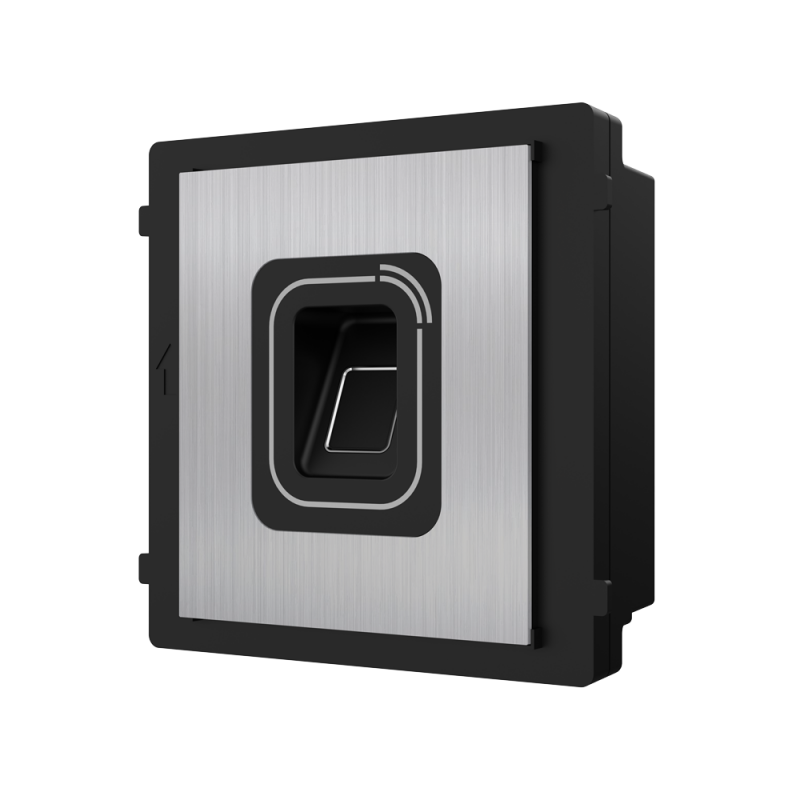

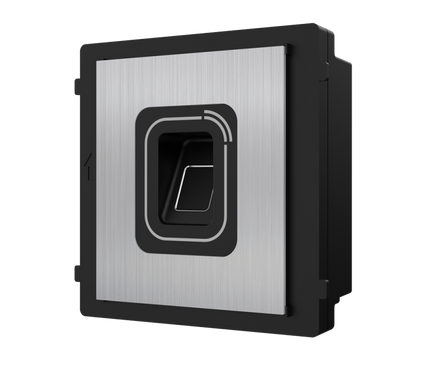

DS-KD-MFB-S, fingerprint and card reader module stainless steel

HikVision Video Intercom module; Submodule fingerprint and card reader M1, Desfire card, powered via main module KD-8003. To be installed... Read more

Delivery time 1 - 2 working days

€196,37€162,29 Incl. VATExcl. VAT

    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • PayPal
    • Union Pay
    • Visa
    • Pay afterwards within 30 days - both private and business

      <p>Pay afterwards within 30 days - both private and business</p>

    Commande des installateurs B2B avec remise

    • The best service and warranty
    • Free returns within 14 days
    • Free remote installation

    check Associated products for DS-KD-MFB-S, fingerprint and card reader module stainless steel

    Size chart

    HikVision Video Intercom module; Submodule fingerprint and card reader M1, Desfire card, powered via main module KD-8003.

    To be installed with e.g. KD-8003 camera module and ACF or ACW2 housing (not included) in or surface-mount , power supply via main module, RS485 communication, IP65

    Specificaties:

    • Capacity
    • Fingerprint capacity - 1000
    • Card capacity - 6000

      Authentication
    • Card reading frequency - 13.56 MHz
    • Card reading distance - 2 cm
    • Card type M1, Desfire card

      Device interfaces
    • DIP switch - 8 bits
    • RS-485 - 1

      General
    • Installation - Flush mounting, surface mounting
    • Protective level - IP65
    • Working temperature - -30 °C to 60 °C
    • Working humidity - 10% to 90% (no-condensing)

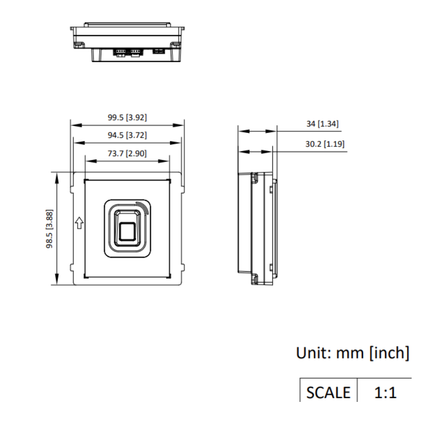

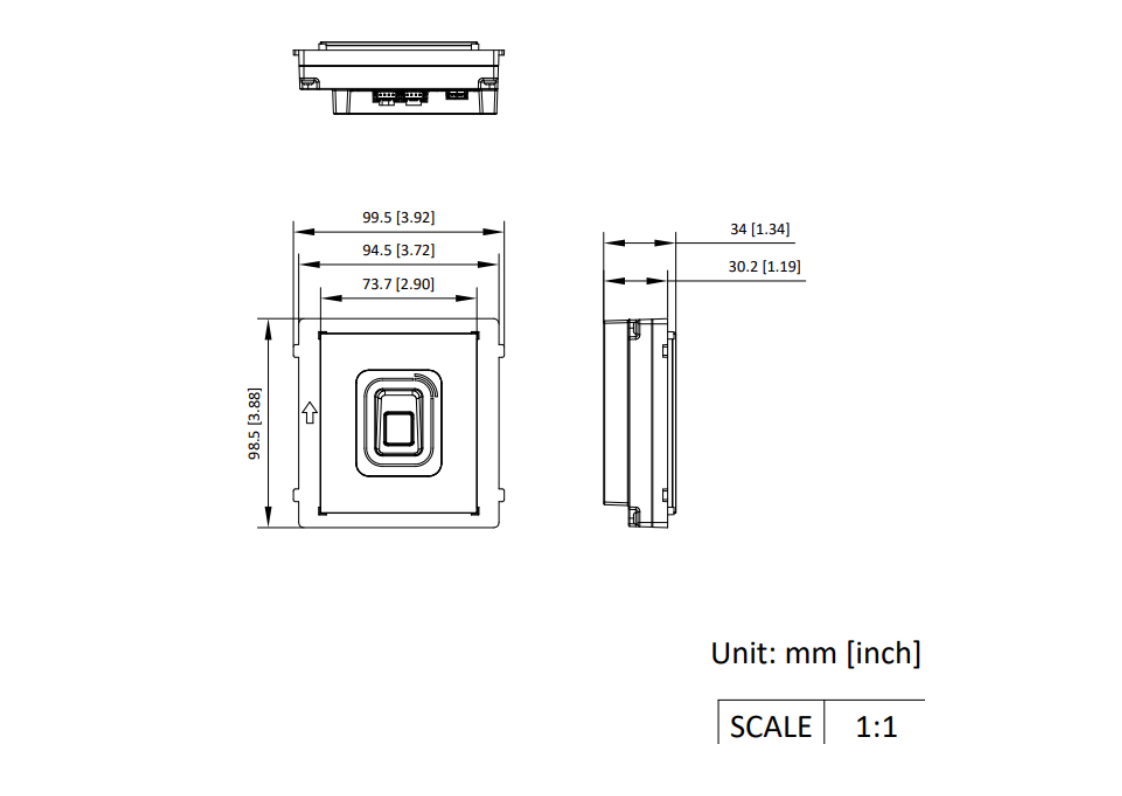

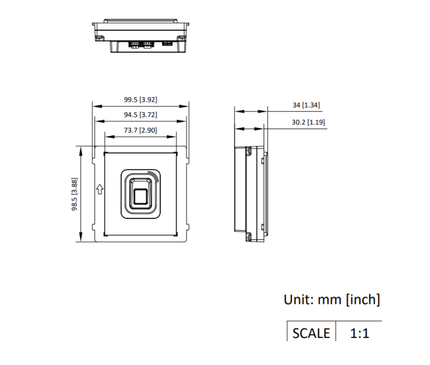

    • Dimension - (W × H × D) 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
    • Power supply - 12 VDC, supplied by the main module
    • Power consumption - ≤ 4 W
